Prior Checks on Risk of Thermal Issues Using Thermal Simulation Tool

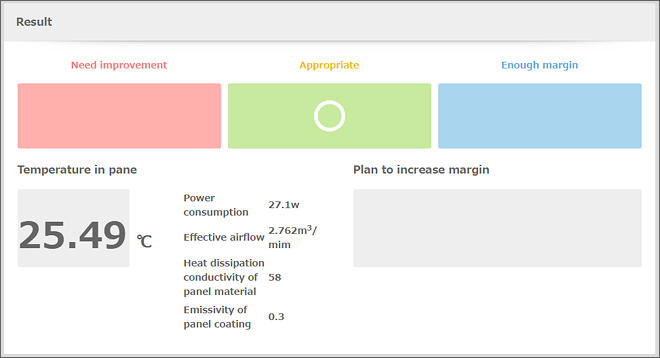

You can understand the risk from heat inside a designed control panel by just inputting basic control panel information and information on the selected devices.
Importing BOM from the Panel Assist Web eliminates the need for inputting the outputs (W) and other information on the devices.

Calculations are completed quickly for prompt results (waiting time of approx. 10 to 15 seconds).
With this convenient tool, you can understand the thermal risk any time, anywhere, simply and quickly because the processing is done on the Web.

Thermal Simulation Tool
