(單位:mm)

Pre-wired Models (Shielded)

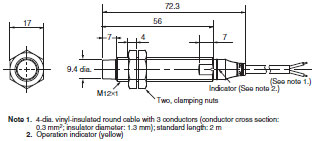

E2A 外觀尺寸 1 Pre-wired Models (Shielded)_Dim

Pre-wired Models (Non-shielded)

E2A 外觀尺寸 2 Pre-wired Models (Non-shielded)_Dim



E2A-S08KS02-WP-[][]

E2A 外觀尺寸 4 E2A-S08KS02-WP-[][]_Dim

E2A-S08KN04-WP-[][]

E2A 外觀尺寸 5 E2A-S08KN04-WP-[][]_Dim



E2A-M12KS04-WP-[][]

E2A 外觀尺寸 7 E2A-M12KS04-WP-[][]_Dim

E2A-M12KN08-WP-[][]

E2A 外觀尺寸 8 E2A-M12KN08-WP-[][]_Dim



E2A-M18KS08-WP-[][]

E2A 外觀尺寸 10 E2A-M18KS08-WP-[][]_Dim

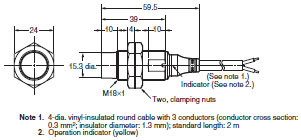

E2A-M18KN16-WP-[][]

E2A 外觀尺寸 11 E2A-M18KN16-WP-[][]_Dim



E2A-M30KS15-WP-[][]

E2A 外觀尺寸 13 E2A-M30KS15-WP-[][]_Dim

E2A-M30KN20-WP-[][]

E2A 外觀尺寸 14 E2A-M30KN20-WP-[][]_Dim



E2A-S08LS02-WP-[][]

E2A 外觀尺寸 16 E2A-S08LS02-WP-[][]_Dim

E2A 外觀尺寸 17 E2A-S08LN04-WP-[][]_Dim



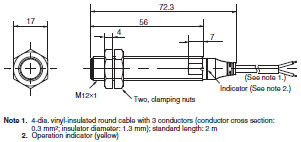

E2A-M12LS04-WP-[][]

E2A 外觀尺寸 19 E2A-M12LS04-WP-[][]_Dim

E2A-M12LN08-WP-[][]

E2A 外觀尺寸 20 E2A-M12LN08-WP-[][]_Dim



E2A-M18LS08-WP-[][]

E2A 外觀尺寸 22 E2A-M18LS08-WP-[][]_Dim

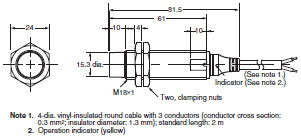

E2A-M18LN16-WP-[][]

E2A 外觀尺寸 23 E2A-M18LN16-WP-[][]_Dim



E2A-M30LS15-WP-[][]

E2A 外觀尺寸 25 E2A-M30LS15-WP-[][]_Dim

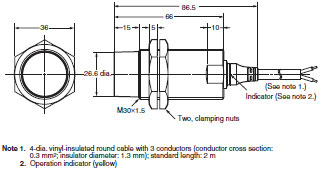

E2A-M30LN30-WP-[][]

E2A 外觀尺寸 26 E2A-M30LN30-WP-[][]_Dim



Mounting Hole Cutout Dimensions

E2A 外觀尺寸 28 Mounting Hole Cutout Dimensions_Dim



M12 Connector Models (Shielded)

E2A 外觀尺寸 30 M12 Connector Models (Shielded)_Dim

M12 Connector Models (Non-shielded)

E2A 外觀尺寸 31 M12 Connector Models (Non-shielded)_Dim



E2A-S08KS02-M1-[][]
E2A-M08KS02-M1-[][]

E2A 外觀尺寸 33 E2A-S08KS02-M1-[][]_Dim

E2A-S08KN04-M1-[][]
E2A-M08KN04-M1-[][]

E2A 外觀尺寸 34 E2A-S08KN04-M1-[][]_Dim



E2A-M12KS04-M1-[][]

E2A 外觀尺寸 36 E2A-M12KS04-M1-[][]_Dim

E2A-M12KN08-M1-[][]

E2A 外觀尺寸 37 E2A-M12KN08-M1-[][]_Dim



E2A-M18KS08-M1-[][]

E2A 外觀尺寸 39 E2A-M18KS08-M1-[][]_Dim

E2A-M18KN16-M1-[][]

E2A 外觀尺寸 40 E2A-M18KN16-M1-[][]_Dim



E2A-M30KS15-M1-[][]

E2A 外觀尺寸 42 E2A-M30KS15-M1-[][]_Dim

E2A-M30KN20-M1-[][]

E2A 外觀尺寸 43 E2A-M30KN20-M1-[][]_Dim



E2A-S08LS02-M1-[][]
E2A-M08LS02-M1-[][]

E2A 外觀尺寸 45 E2A-S08LS02-M1-[][]_Dim

E2A-S08LN04-M1-[][]
E2A-M08LN04-M1-[][]

E2A 外觀尺寸 46 E2A-S08LN04-M1-[][]_Dim



E2A-M12LS04-M1-[][]

E2A 外觀尺寸 48 E2A-M12LS04-M1-[][]_Dim

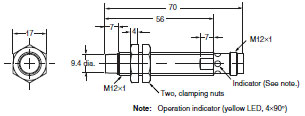

E2A-M12LN08-M1-[][]

E2A 外觀尺寸 49 E2A-M12LN08-M1-[][]_Dim



E2A-M18LS08-M1-[][]

E2A 外觀尺寸 51 E2A-M18LS08-M1-[][]_Dim

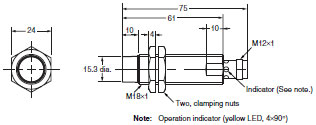

E2A-M18LN16-M1-[][]

E2A 外觀尺寸 52 E2A-M18LN16-M1-[][]_Dim



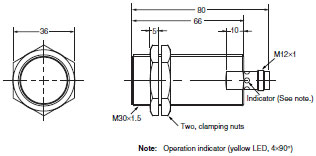

E2A-M30LS15-M1-[][]

E2A 外觀尺寸 54 E2A-M30LS15-M1-[][]_Dim

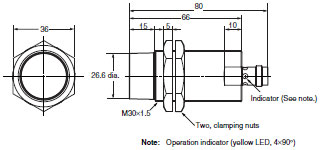

E2A-M30LN30-M1-[][]

E2A 外觀尺寸 55 E2A-M30LN30-M1-[][]_Dim



M8 Connector Models (Shielded)

E2A 外觀尺寸 57 M8 Connector Models (Shielded)_Dim

M8 Connector Models (Non-shielded)

E2A 外觀尺寸 58 M8 Connector Models (Non-shielded)_Dim



E2A-S08KS02-M5-[][]

E2A 外觀尺寸 60 E2A-S08KS02-M5-[][]_Dim

E2A-S08KN04-M5-[][]

E2A 外觀尺寸 61 E2A-S08KN04-M5-[][]_Dim



E2A-S08LS02-M5-[][]

E2A 外觀尺寸 63 E2A-S08LS02-M5-[][]_Dim

E2A-S08LN04-M5-[][]

E2A 外觀尺寸 64 E2A-S08LN04-M5-[][]_Dim
