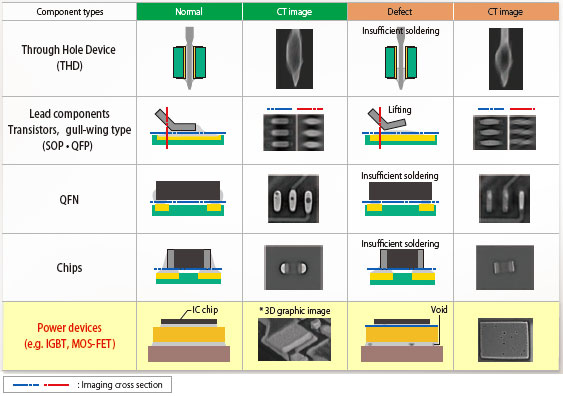

The cross-sectional images of relevant inspection targets can be easily selected from abundant camera-image libraries to ensure precise fault detection.
2019/04 停產商品
VT-X700-E / -L
High-speed automated X-ray CT inspection system

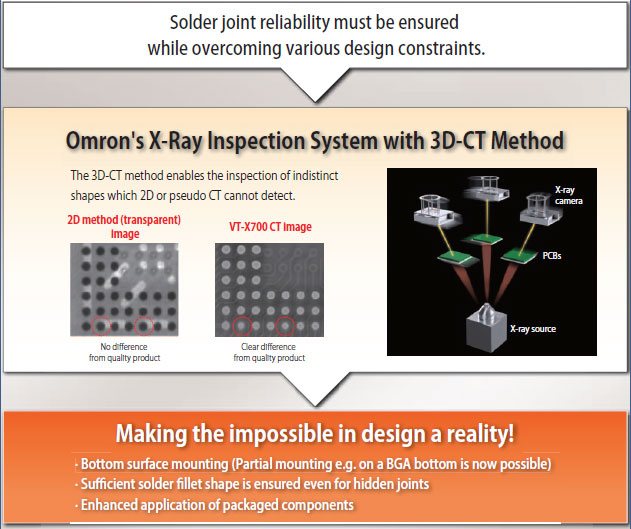

The 3D-CT method enables the inspection of indistinct shapes which 2D or pseudo CT cannot detect. Making the impossible in design a reality!
此頁記載內容是在依據停產前商品型錄內刊載的資訊，包括商品的特點 /價格 /對應規格 /選購品等，可能會和現狀有所出入。請在選購前再次確認系統的適用性及安全性。
更新日期 2016年1月6日

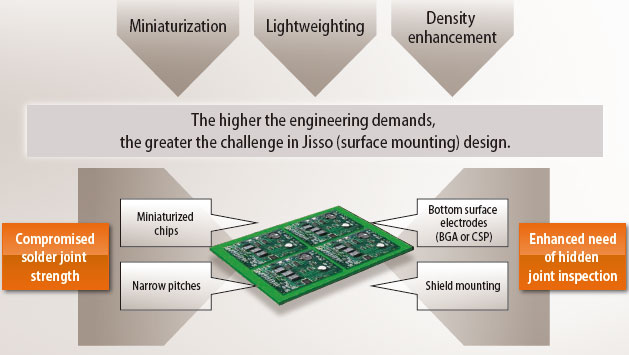

Market Trends and Issues
Pinpoint Inspection

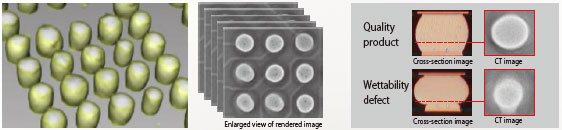

3D-CT Method
Full coverage
High-Output X-Ray Source
Inspection of large-thickness PCBs and power devices is possible by combining a proprietary CT structuring technology with a high-output X-ray source.
Compatibility with L-Sized (610 mm × 610 mm) PCBs
Compatible with large-sized PCBs such as those used by network base stations.
High-speed
10% Reduction in Inspection Tact Time (Internal Comparison)
World's highest CT speed* thanks to our patent-approved technologies.
New imaging system reduced inspection tact times by 10% compared with conventional systems.
Enabled the complete inspection of all components
(almost impossible by visible light-based inspection).
* Based on an internal research conducted in January 2015.
