規格選型
（單位：mm）
2018/05 停產商品
FJ Series (All-in-One Vision System)
PC Vision System
PC-based, flexible image processing system. All-in-One Vision System.
此頁記載內容是在依據停產前商品型錄內刊載的資訊，包括商品的特點 /價格 /對應規格 /選購品等，可能會和現狀有所出入。請在選購前再次確認系統的適用性及安全性。
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2018年2月7日
Controllers
LCD-integrated type
FJ-300[]/FJ-300[]-10
FJ-H300[]/FJ-H300[]-10

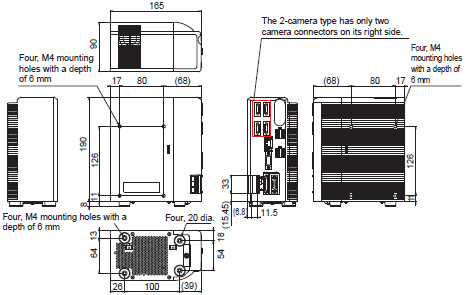

Box-type
FJ-305[]/FJ-305[]-10
FJ-H305[]/FJ-H305[]-10
FJ-35[]/FJ-35[]-10
Cable

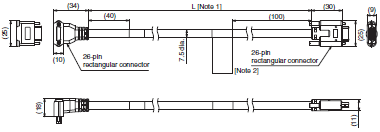

Camera Cable
Camera Cable
FZ-VS3
Bend resistant Camera Cable
FZ-VSB3
Right-angle Camera Cable
FZ-VSL3
Bend resistant Right-angle Camera Cable
FZ-VSLB3

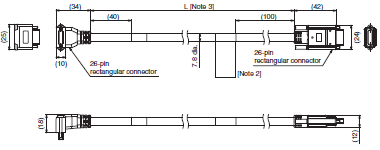

Long-distance Camera Cable
FZ-VS4
Long-distance Right-angle Camera Cable
FZ-VSL4
Note1. Cable is available in 2m/3m/5m/10m.
2. Each camera cables has polarity. Please ensure that the name plate side of the cable is connected to the
controller.
3. Cable is available in 15m.

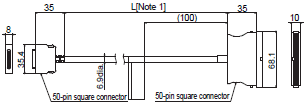

Parallel Cable
FZ-VP
Note 1: cable is available in 2 m/5 m.
FZ-VPX
Note 1: cable is available in 2 m/5 m.
Monitor Cable

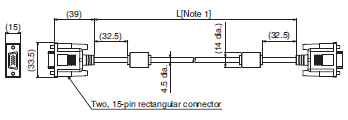

FZ-VM
Note 1: cable is available in 2 m/5 m.
Cameras
Digital cameras

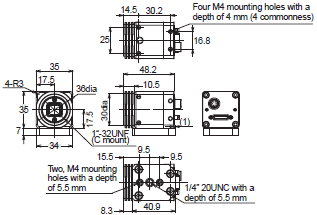

300,000-pixel camera
FZ-S
FZ-SC
2 million-pixel camera
FZ-S2M
FZ-SC2M
Small digital cameras
Camera head

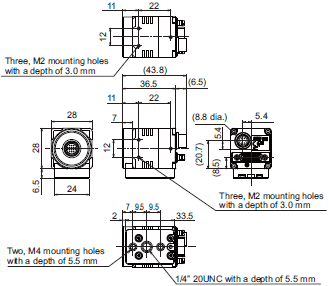

Flat camera

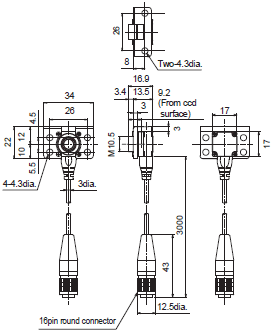

FZ-SF
FZ-SFC
Pen-shaped camera

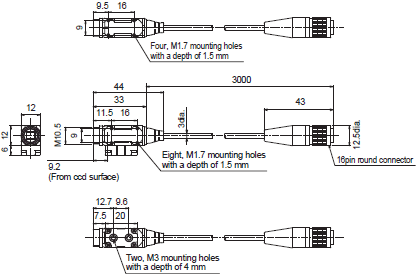

FZ-SP
FZ-SPC
Camera amplifier
Can be used for both flat cameras and pen-shaped cameras
High speed camera
FZ-SHC
FZ-SH
Intelligent Compact Cameras
(Dimensional drawings are provided here only for the products that have undergone design changes as of Dec. 2012.)
Narrow view/Standard

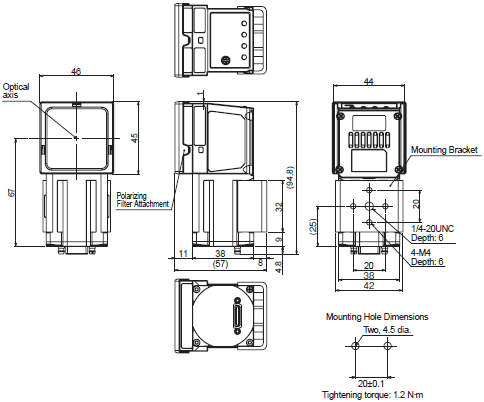

FZ-SQ010F
FZ-SQ050F
Note 1. The mounting brackets can be connected to either side.
Wide View

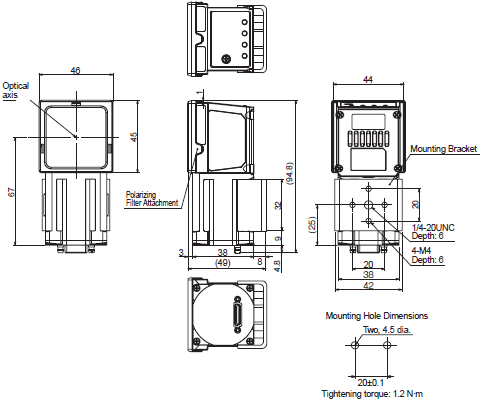

FZ-SQ100F (long-distance)
FZ-SQ100N (short-distance)
Note 1. The mounting brackets can be connected to either side.

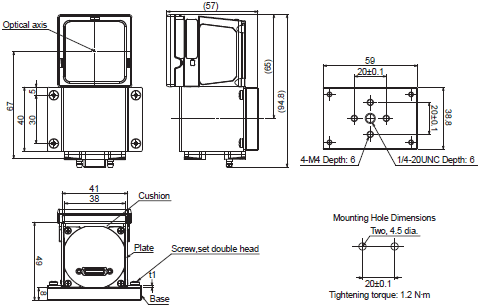

See the diagram below when mounting bracket FQ-XL2 is attached.
Lens for small camera

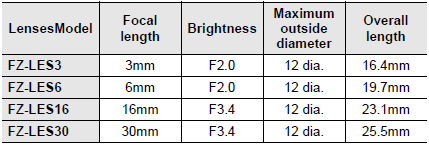

FZ-LES Series
Extension Tubes for small camera
FZ-LESR
Camera Cable Extension Unit
FZ-VSJ

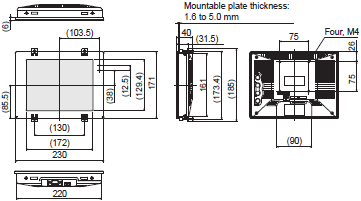

LCD Monitor
FZ-M08
