Sensor Controllers

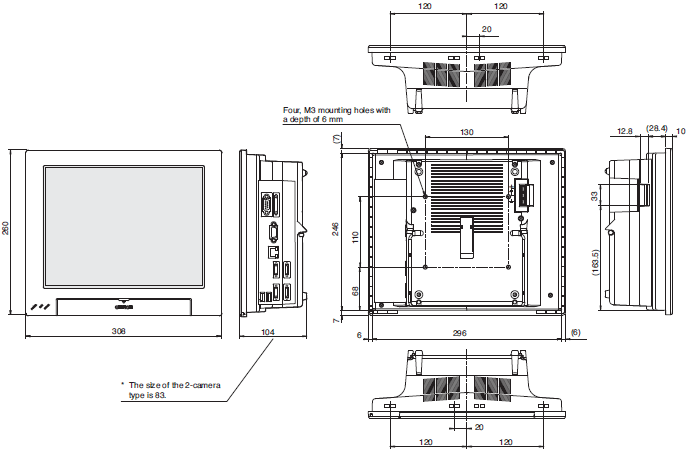

FZ5-series LCD-integrated type
FZ5-1200/-1205/-1200-10/-1205-10
FZ5-800/-805/-800-10/-805-10

FZ5 外觀尺寸 2

Cameras

Digital CCD/CMOS Cameras

300,000-pixel camera
FZ-S
FZ-SC

FZ5 外觀尺寸 5

2 million-pixel camera
FZ-S2M
FZ-SC2M

FZ5 外觀尺寸 6

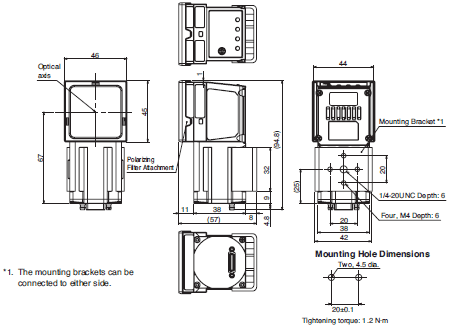

5 million-pixel camera
FZ-S5M3
FZ-SC5M3

FZ5 外觀尺寸 7

Small digital CCD cameras

Camera head

Flat camera
FZ-SF
FZ-SFC

FZ5 外觀尺寸 9

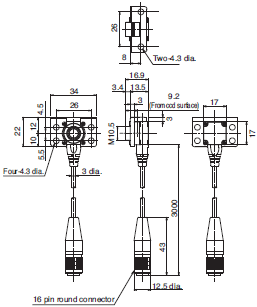

Pen-shaped camera
FZ-SP
FZ-SPC

FZ5 外觀尺寸 10

Camera amplifier

Can be used for both flat cameras and pen-shaped cameras

FZ5 外觀尺寸 11

Intelligent Compact CMOS Cameras

Narrow view/Standard

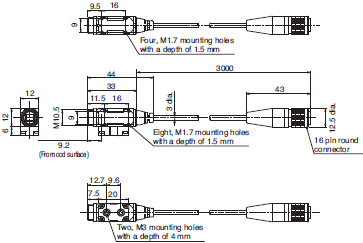

FZ-SQ010F
FZ-SQ050F

FZ5 外觀尺寸 13

Wide View
FZ-SQ100F (long-distance)
FZ-SQ100N (short-distance)

FZ5 外觀尺寸 14

Cables

Camera Cable

Camera Cable

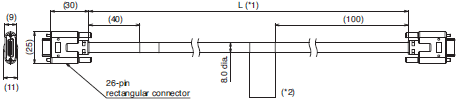

FZ-VS3

FZ5 外觀尺寸 17

Bend resistant Camera Cable
FZ-VSB3

FZ5 外觀尺寸 18

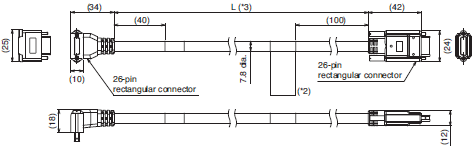

Right-angle Camera Cable
FZ-VSL3

FZ5 外觀尺寸 19

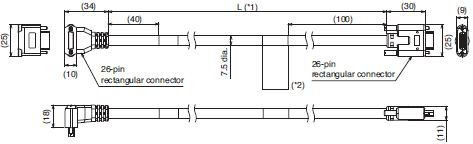

Bend resistant Right-angle Camera Cable
FZ-VSLB3

FZ5 外觀尺寸 20

Long-distance Camera Cable
FZ-VS4

FZ5 外觀尺寸 21

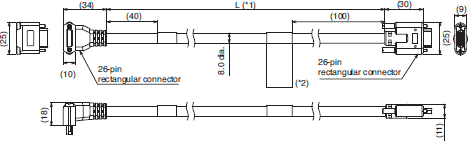

Long-distance Right-angle Camera Cable
FZ-VSL4

FZ5 外觀尺寸 22

*1. Cable is available in 2 m/3 m/5 m/10 m.
*2. Each camera cables has polarity.
       Please ensure that the name plate side of the cable is connected to the controller.
*3. Cable is available in 15 m.

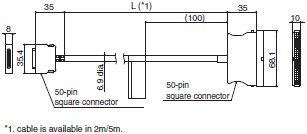

Parallel Cable

FZ-VP

FZ5 外觀尺寸 25

FZ-VPX

FZ5 外觀尺寸 26

LED Monitor Cable

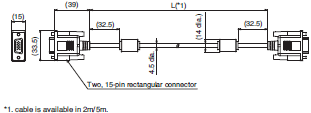

FZ-VM

FZ5 外觀尺寸 28

LCD Monitor

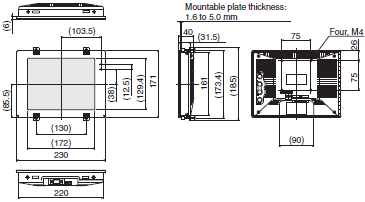

FZ-M08

FZ5 外觀尺寸 30

Camera Cable Extension Unit

FZ-VSJ

FZ5 外觀尺寸 32
