(單位:mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

E2Q6-N20E3-H
E2Q6-N20F3-H
E2Q6-N30ME3-H
E2Q6-N30MF3-H

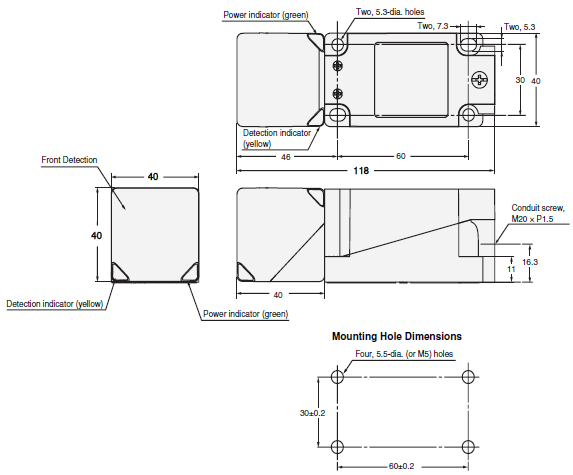

E2Q6 外觀尺寸 3

Accessories (Sold Separately)

Recommended Cable Gland (ST Type) (Manufactured by LAPP)

E2Q6 外觀尺寸 5

Note: A seal packing is not included.
