J7KC Series
Magnetic Contactor
Best Match for upto 2.2 kW (240 VAC) *, 5.5 kW (440 VAC) Motor and Primary Side switches * Based on JIS C 8201-4-1
更新日期 2024年2月1日
Model Number Structure

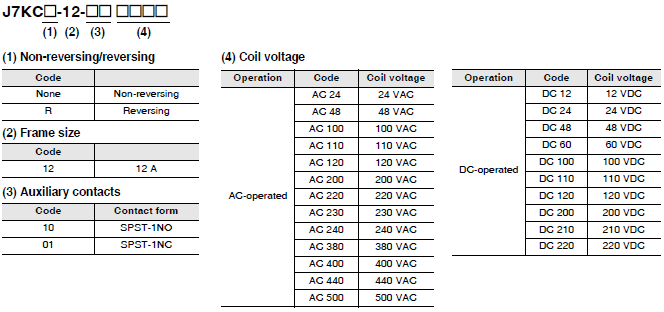

Model Number Legend
Ordering Information
Main unit
| Product Type | Operation | Coil rating | Auxiliary contact | Model |
|---|---|---|---|---|
| Magnetic contactor | AC-operated | 24 VAC | SPST-1NO | J7KC-12-10 AC24 |
| SPST-1NC | J7KC-12-01 AC24 | |||
| 48 VAC | SPST-1NO | J7KC-12-10 AC48 | ||
| SPST-1NC | J7KC-12-01 AC48 | |||
| 100 VAC | SPST-1NO | J7KC-12-10 AC100 | ||
| SPST-1NC | J7KC-12-01 AC100 | |||
| 110 VAC | SPST-1NO | J7KC-12-10 AC110 | ||
| SPST-1NC | J7KC-12-01 AC110 | |||
| 120 VAC | SPST-1NO | J7KC-12-10 AC120 | ||
| SPST-1NC | J7KC-12-01 AC120 | |||
| 200 VAC | SPST-1NO | J7KC-12-10 AC200 | ||
| SPST-1NC | J7KC-12-01 AC200 | |||
| 220 VAC | SPST-1NO | J7KC-12-10 AC220 | ||
| SPST-1NC | J7KC-12-01 AC220 | |||
| 230 VAC | SPST-1NO | J7KC-12-10 AC230 | ||
| SPST-1NC | J7KC-12-01 AC230 | |||
| 240 VAC | SPST-1NO | J7KC-12-10 AC240 | ||
| SPST-1NC | J7KC-12-01 AC240 | |||
| 380 VAC | SPST-1NO | J7KC-12-10 AC380 | ||
| SPST-1NC | J7KC-12-01 AC380 | |||
| 400 VAC | SPST-1NO | J7KC-12-10 AC400 | ||
| SPST-1NC | J7KC-12-01 AC400 | |||
| 440 VAC | SPST-1NO | J7KC-12-10 AC440 | ||
| SPST-1NC | J7KC-12-01 AC440 | |||
| 500 VAC | SPST-1NO | J7KC-12-10 AC500 | ||
| SPST-1NC | J7KC-12-01 AC500 | |||
| DC-operated
(With built-in surge absorption uni) |
12 VDC | SPST-1NO | J7KC-12-10 DC12 | |
| SPST-1NC | J7KC-12-01 DC12 | |||
| 24 VDC | SPST-1NO | J7KC-12-10 DC24 | ||
| SPST-1NC | J7KC-12-01 DC24 | |||
| 48 VDC | SPST-1NO | J7KC-12-10 DC48 | ||
| SPST-1NC | J7KC-12-01 DC48 | |||
| 60 VDC | SPST-1NO | J7KC-12-10 DC60 | ||
| SPST-1NC | J7KC-12-01 DC60 | |||
| 100 VDC | SPST-1NO | J7KC-12-10 DC100 | ||
| SPST-1NC | J7KC-12-01 DC100 | |||
| 110 VDC | SPST-1NO | J7KC-12-10 DC110 | ||
| SPST-1NC | J7KC-12-01 DC110 | |||
| 120 VDC | SPST-1NO | J7KC-12-10 DC120 | ||
| SPST-1NC | J7KC-12-01 DC120 | |||
| 200 VDC | SPST-1NO | J7KC-12-10 DC200 | ||
| SPST-1NC | J7KC-12-01 DC200 | |||
| 210 VDC | SPST-1NO | J7KC-12-10 DC210 | ||
| SPST-1NC | J7KC-12-01 DC210 | |||
| 220 VDC | SPST-1NO | J7KC-12-10 DC220 | ||
| SPST-1NC | J7KC-12-01 DC220 | |||
| Reversing magnetic
contactor |
AC-operated | 24 VAC | SPST-2NO | J7KCR-12-10 AC24 |
| SPST-2NC | J7KCR-12-01 AC24 | |||
| 48 VAC | SPST-2NO | J7KCR-12-10 AC48 | ||
| SPST-2NC | J7KCR-12-01 AC48 | |||
| 100 VAC | SPST-2NO | J7KCR-12-10 AC100 | ||
| SPST-2NC | J7KCR-12-01 AC100 | |||
| 110 VAC | SPST-2NO | J7KCR-12-10 AC110 | ||
| SPST-2NC | J7KCR-12-01 AC110 | |||
| 120 VAC | SPST-2NO | J7KCR-12-10 AC120 | ||
| SPST-2NC | J7KCR-12-01 AC120 | |||
| 200 VAC | SPST-2NO | J7KCR-12-10 AC200 | ||
| SPST-2NC | J7KCR-12-01 AC200 | |||
| 220 VAC | SPST-2NO | J7KCR-12-10 AC220 | ||
| SPST-2NC | J7KCR-12-01 AC220 | |||
| 230 VAC | SPST-2NO | J7KCR-12-10 AC230 | ||
| SPST-2NC | J7KCR-12-01 AC230 | |||
| 240 VAC | SPST-2NO | J7KCR-12-10 AC240 | ||
| SPST-2NC | J7KCR-12-01 AC240 | |||
| 380 VAC | SPST-2NO | J7KCR-12-10 AC380 | ||
| SPST-2NC | J7KCR-12-01 AC380 | |||
| 400 VAC | SPST-2NO | J7KCR-12-10 AC400 | ||
| SPST-2NC | J7KCR-12-01 AC400 | |||
| 440 VAC | SPST-2NO | J7KCR-12-10 AC440 | ||
| SPST-2NC | J7KCR-12-01 AC440 | |||
| 500 VAC | SPST-2NO | J7KCR-12-10 AC500 | ||
| SPST-2NC | J7KCR-12-01 AC500 | |||
| DC-operated
(With built-in surge absorption unit) |
12 VDC | SPST-2NO | J7KCR-12-10 DC12 | |
| SPST-2NC | J7KCR-12-01 DC12 | |||
| 24 VDC | SPST-2NO | J7KCR-12-10 DC24 | ||
| SPST-2NC | J7KCR-12-01 DC24 | |||
| 48 VDC | SPST-2NO | J7KCR-12-10 DC48 | ||
| SPST-2NC | J7KCR-12-01 DC48 | |||
| 60 VDC | SPST-2NO | J7KCR-12-10 DC60 | ||
| SPST-2NC | J7KCR-12-01 DC60 | |||
| 100 VDC | SPST-2NO | J7KCR-12-10 DC100 | ||
| SPST-2NC | J7KCR-12-01 DC100 | |||
| 110 VDC | SPST-2NO | J7KCR-12-10 DC110 | ||
| SPST-2NC | J7KCR-12-01 DC110 | |||
| 120 VDC | SPST-2NO | J7KCR-12-10 DC120 | ||
| SPST-2NC | J7KCR-12-01 DC120 | |||
| 200 VDC | SPST-2NO | J7KCR-12-10 DC200 | ||
| SPST-2NC | J7KCR-12-01 DC200 | |||
| 210 VDC | SPST-2NO | J7KCR-12-10 DC210 | ||
| SPST-2NC | J7KCR-12-01 DC210 | |||
| 220 VDC | SPST-2NO | J7KCR-12-10 DC220 | ||
| SPST-2NC | J7KCR-12-01 DC220 |
Options (Order Separately)
Auxiliary contact unit
| Number of poles | Auxiliary contact | Model |
|---|---|---|
| 2 poles | 2PST-2NO | J73KC-AM-20 |
| 2PST-1NO 1NC | J73KC-AM-11 | |
| 2PST-2NC | J73KC-AM-02 | |
| 4 poles | 4PST-4NO | J73KC-AM-40 |
| 4PST-3NO 1NC | J73KC-AM-31 | |
| 4PST-2NO 2NC | J73KC-AM-22 | |
| 4PST-1NO 3NC | J73KC-AM-13 | |
| 4PST-4NC | J73KC-AM-04 |
Interlock unit
| Model |
|---|
| J74KC-A |
Reversing conductor kit
| Type | Model |
|---|---|
| For main circuit | J75KC-WKR-A |
| For auxiliary circuit | J75KC-WKR-B |
Coil surge absorption unit
| Adopted Coil voltage type | LED indicator | Model |
|---|---|---|
| 24-48 VAC | No | J76KC-RC-1 |
| 48-125 VAC | J76KC-RC-2 | |
| 100-250 VAC | J76KC-RC-3 | |
| 24-48 VAC | Yes | J76KC-RC-N-1 |
| 48-125 VAC | J76KC-RC-N-2 |
Insulation stop
| Model | Minimum order (bag) |
|---|---|
| J77KC-K | 1
(30 pcs./bag) |
Tools for removal
| Model |
|---|
| J78KC |
DIN Rails (Order Separately)
Mounting Rail
| Model |
|---|
| PFP-100N |
| PFP-50N |
Mounting Rail
| Model |
|---|
| PFP-100N2 |
End Plate
| Model |
|---|
| PFP-M |
Spacer
| Model |
|---|
| PFP-S |
Note:
1. Order the DIN Rails (Order Separately) in units of ten.
2. Rails conform to DIN standards.
