H7CC-R

Digital Tachometer

H7CC-R

New and improved design for easier use, programming, maintenance and user feedback. The improved user interface is intuitive and offers better overall visibility. Replacement time notification function notifies the user of potential preventive maintenance

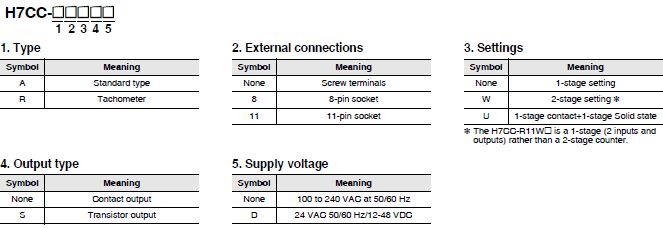

Model Number Legend (Not all possible combinations of functions are available.)

H7CC-R 種類 1

List of Models

Classification Configuration External
connections
Settings Display
digits
Outputs Power
supply
voltage
Model
Tachometer • Tachometer 11-pin socket 1-stage
(1 input
and
output)
6 digits Contact output
(SPDT)
100 to
240 VAC
H7CC-R11
24 VAC/
12 to 48
VDC
H7CC-R11D
1 stage
(2 inputs
and
outputs)
Contact output
(SPDT+SPST)
100 to
240 VAC
H7CC-R11W
24 VAC/
12 to 48
VDC
H7CC-R11WD

Accessories (Order Separately)

Soft Cover

Model Remarks
Y92A-48F1 ---

Hard Cover

Model Remarks
Y92A-48 ---

Flush Mounting Adapter

Model Remarks
Y92F-30 Included with models with screw terminals.
Y92F-45 Use this Adapter to install the Counter/Tachometer in a cutout previously made
for a DIN 72 × 72 mm device (panel cutout: 68 × 68 mm).

Waterproof Packing

Model Remarks
Y92S-P6 Included with models with screw terminals.

Connection Sockets

Model Classification Connectable
Counter/
Tachometers
Remarks
P2CF-08 Front-connecting Socket H7CC-[]8 ---
P2CF-08-E Front-connecting Socket
(Finger-safe Type)
Round crimp terminals cannot be used on
Finger-safe Sockets.
Use forked crimp terminals.
P3G-08 Back-connecting Sockets A Y92A-48G Terminal Cover can be used with
the Socket to create a finger-safe construction.
P2CF-11 Front-connecting Socket H7CC-[]11 ---
P2CF-11-E Front-connecting Socket
(Finger-safe Type)
Round crimp terminals cannot be used on
Finger-safe Sockets.
Use forked crimp terminals.
P3GA-11 Back-connecting Sockets A Y92A-48G Terminal Cover can be used with
the Socket to create a finger-safe construction.

Terminal Covers for P3G-08/P3GA-11 Back-connecting Socket

Model Remarks
Y92A-48G ---
