規格選型
（單位：mm）
KM-PM
Power Monitor
38 mm-wide Ethernet Power Monitor for Global Control Panel Integration
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2025年10月1日

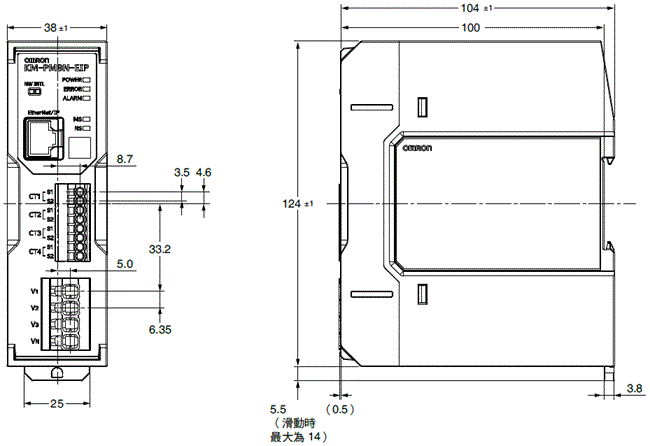

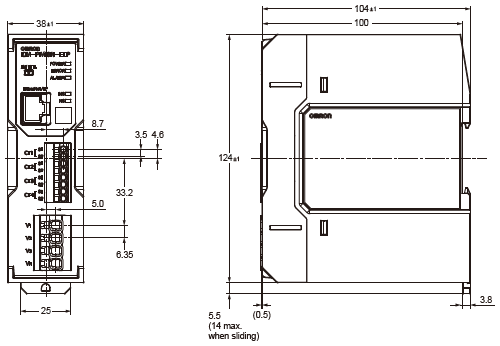

Main unit
KM-PMBN-EIP

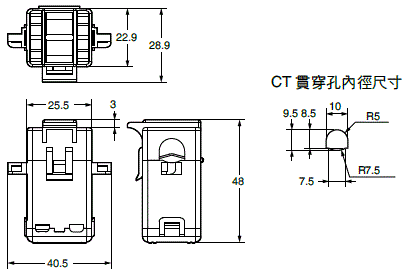

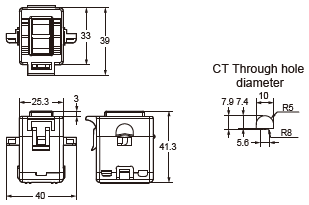

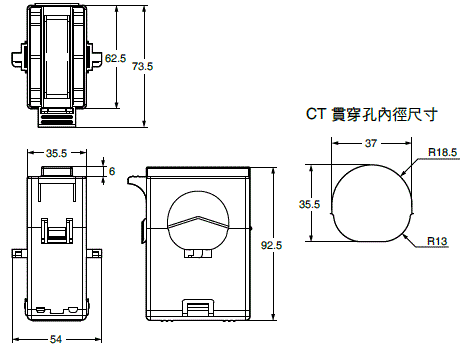

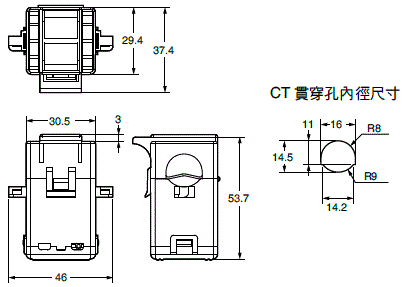

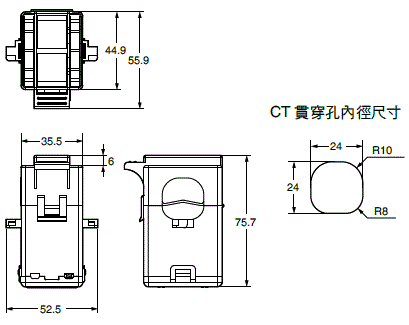

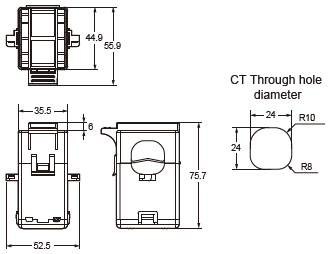

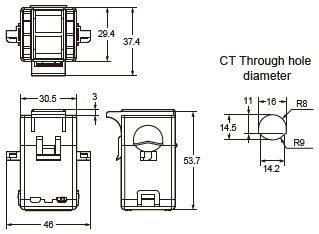

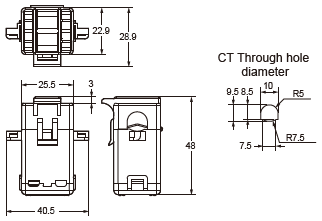

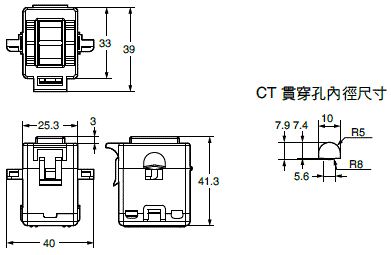

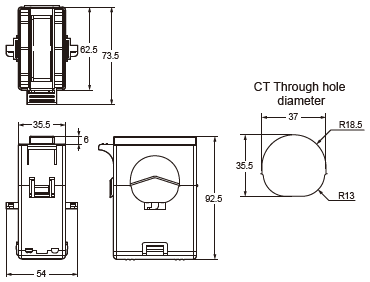

Dedicated CT
KM-PCBE005
KM-PCBE050
KM-PCBE100
KM-PCBE200
KM-PCBE400
KM-PCBE600
Note: 1. KM-PCBE600 is only available in certain regions.
Note: 2. The CT with a 600 A rating (KM-PCBE600) does not support safety standard certification, including UL/CSA certification.

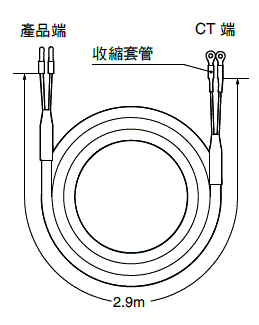

CT-supplied cable
Note: The CT-supplied cable is attached to the CT.
Optional Products for DIN Track Mounting

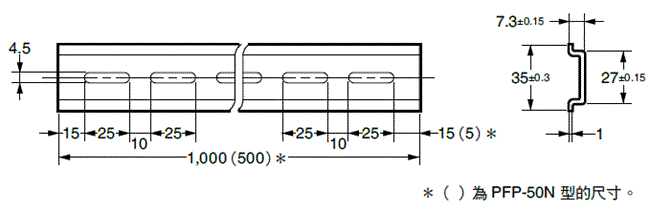

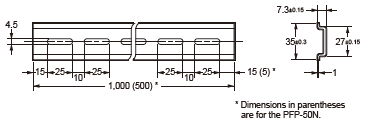

DIN Tracks
PFP-100N
PFP-50N
End Plate
PFP-M
