E2E2
Long-barrel Inductive Proximity Sensor
Proximity Sensor with a Long Screw Length
近接感測器 選型工具
只需選擇檢測距離/材料/尺寸等必要條件，即可搜索接近傳感器類型。
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2024年11月11日
Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.
Shielded

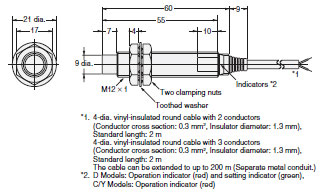

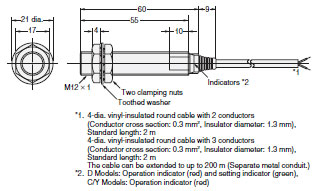

E2E2-X3D[]/E2E2-X2C[]/E2E2-X2Y[]

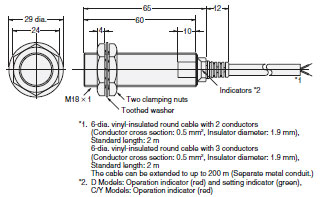

E2E2-X7D[]/E2E2-X5C[]/E2E2-X5Y[]

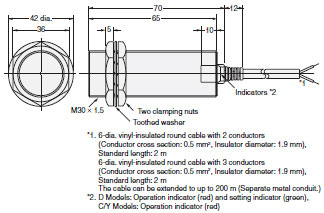

E2E2-X10D[]/E2E2-X10C[]/E2E2-X10Y[]
Unshielded
E2E2-X8MD[]/E2E2-X5MC[]/E2E2-X5MY[]

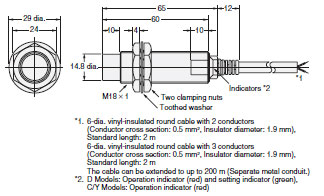

E2E2-X14MD[]/E2E2-X10MC[]/E2E2-X10MY[]

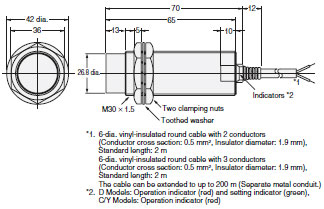

E2E2-X20MD[]/E2E2-X18MC[]/E2E2-X18MY[]
Mounting Hole Dimensions
Note 1. Two clamping nuts and one toothed washer are provided with each Sensors.
2. The model number is laser-marked on the cable section and milled section.
2. The model number is laser-marked on the cable section and milled section.
Shielded

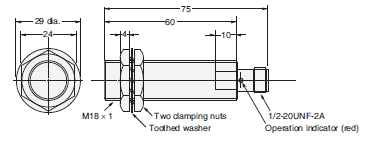

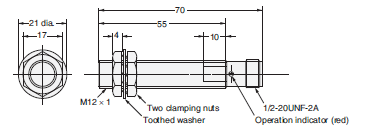

E2E2-X2Y[]-M4
E2E2-X5Y[]-M4
Unshielded

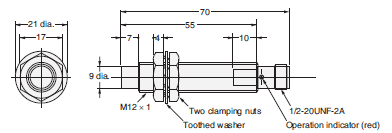

E2E2-X5MY[]-M4
Mounting Hole Dimensions
Note 1. Two clamping nuts and one toothed washer are provided with each Sensors.
