XW2B (Standard-type)

Standard-type Connector-Terminal Block Conversion Units

XW2B (Standard-type)

Simplifies Connector and terminal block replacement, and requires less in-panel wiring.

(單位:mm)

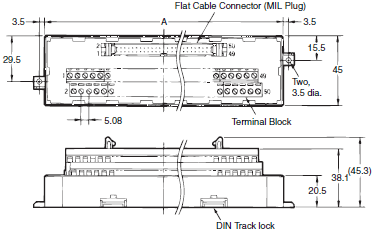

Flat Cable Units with a Terminal Block with M3 Screws
XW2B-[][]G4

XW2B (Standard-type) 外觀尺寸 1
XW2B (Standard-type) 外觀尺寸 2

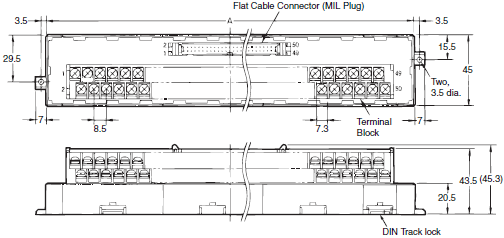

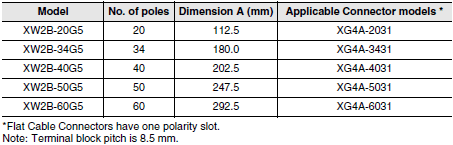

Flat Cable Units with a Terminal Block with M3.5 Screws
XW2B-[][]G5

XW2B (Standard-type) 外觀尺寸 3
XW2B (Standard-type) 外觀尺寸 4

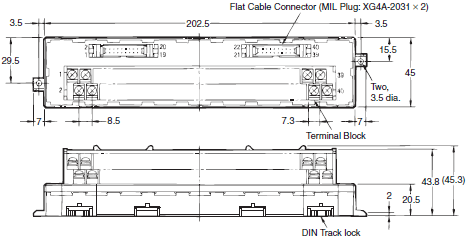

Twin-connector Units with a Terminal Block with M3.5 Screws
XW2B-40G5-T

XW2B (Standard-type) 外觀尺寸 5

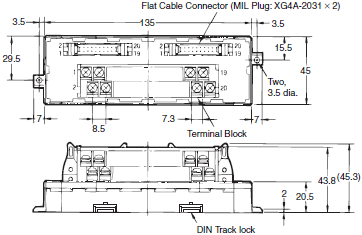

Daisy Chain Units with a Terminal Block with M3.5 Screws
XW2B-20G5-D

XW2B (Standard-type) 外觀尺寸 6

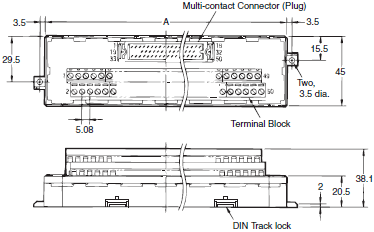

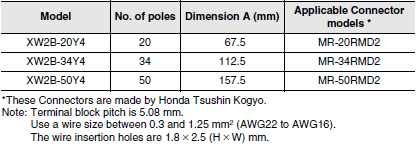

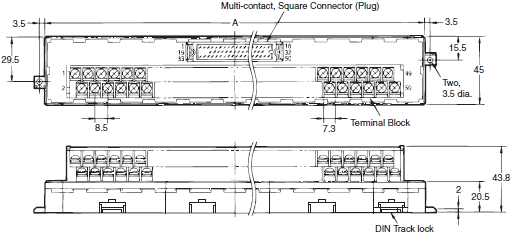

Multi-pole, Square-connector Plug Units with a Terminal Block with M3 Screws
XW2B-[][]Y4

XW2B (Standard-type) 外觀尺寸 7
XW2B (Standard-type) 外觀尺寸 8

Multi-pole, Square-connector Plug Units with a Terminal Block with M3.5 Screws
XW2B-50Y5

XW2B (Standard-type) 外觀尺寸 9
XW2B (Standard-type) 外觀尺寸 10

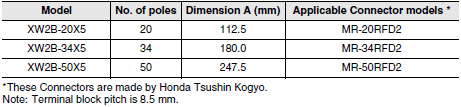

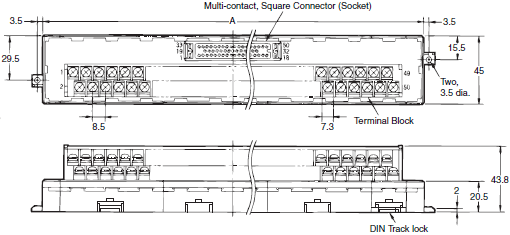

Multi-pole, Square Connector Socket Units with a Terminal Block with M3.5 Screws
XW2B-[][]X5

XW2B (Standard-type) 外觀尺寸 11
XW2B (Standard-type) 外觀尺寸 12

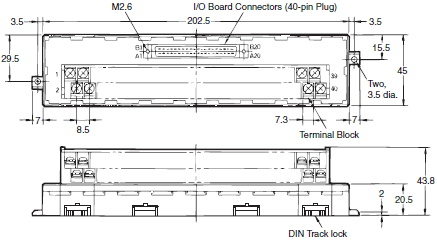

Board I/O Units with a Terminal Block with M3.5 Screws
XW2B-40F5-P

XW2B (Standard-type) 外觀尺寸 13
XW2B (Standard-type) 外觀尺寸 14
