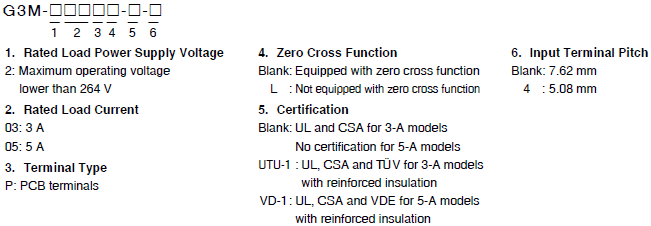

規格選型
| Isolation | Input
terminal pitch |
Zero cross
function |
Indicator | Rated output
load |
Rated
input voltage |
Model | Minimum
packing unit |
|---|---|---|---|---|---|---|---|
| Phototriac | 7.62 mm | Yes | No | 3 A at 100 to
240 VAC |
5 VDC | G3M-203P 5 VDC | 100 pcs |
| 12 VDC | G3M-203P 12 VDC | ||||||
| 24 VDC | G3M-203P 24 VDC | ||||||
| 5 A at 100 to
240 VAC |
5 VDC | G3M-205P 5 VDC | |||||
| 12 VDC | G3M-205P 12 VDC | ||||||
| 24 VDC | G3M-205P 24 VDC | ||||||
| No | 3 A at 100 to
240 VAC |
5 VDC | G3M-203PL 5 VDC | ||||
| 12 VDC | G3M-203PL 12 VDC | ||||||
| 24 VDC | G3M-203PL 24 VDC | ||||||
| 5 A at 100 to
240 VAC |
5 VDC | G3M-205PL 5 VDC | |||||
| 12 VDC | G3M-205PL 12 VDC | ||||||
| 24 VDC | G3M-205PL 24 VDC | ||||||
| 5.08 mm | Yes | 3 A at 100 to
240 VAC |
5 VDC | G3M-203P-4 5 VDC | |||
| 12 VDC | G3M-203P-4 12 VDC | ||||||
| 24 VDC | G3M-203P-4 24 VDC | ||||||
| 5 A at 100 to
240 VAC |
5 VDC | G3M-205P-4 5 VDC | |||||
| 12 VDC | G3M-205P-4 12 VDC | ||||||
| 24 VDC | G3M-205P-4 24 VDC | ||||||
| No | 3 A at 100 to
240 VAC |
5 VDC | G3M-203PL-4 5 VDC | ||||
| 12 VDC | G3M-203PL-4 12 VDC | ||||||
| 24 VDC | G3M-203PL-4 24 VDC | ||||||
| 5 A at 100 to
240 VAC |
5 VDC | G3M-205PL-4 5 VDC | |||||
| 12 VDC | G3M-205PL-4 12 VDC | ||||||
| 24 VDC | G3M-205PL-4 24 VDC |
