The purpose of this model number structure is to provide understanding of the meaning of specifications from the model number.
Models are not available for all combinations of code numbers.
2022/03 停產商品
NY53[]-5[]00
NY 系列 NC 整合控制器
![NY53[]-5[]00](/Images/l_3680-18-278904-198x198.jpg)
整合NY系列含NC功能的IPC機械控制器
此頁記載內容是在依據停產前商品型錄內刊載的資訊，包括商品的特點 /價格 /對應規格 /選購品等，可能會和現狀有所出入。請在選購前再次確認系統的適用性及安全性。
更新日期 2022年1月11日

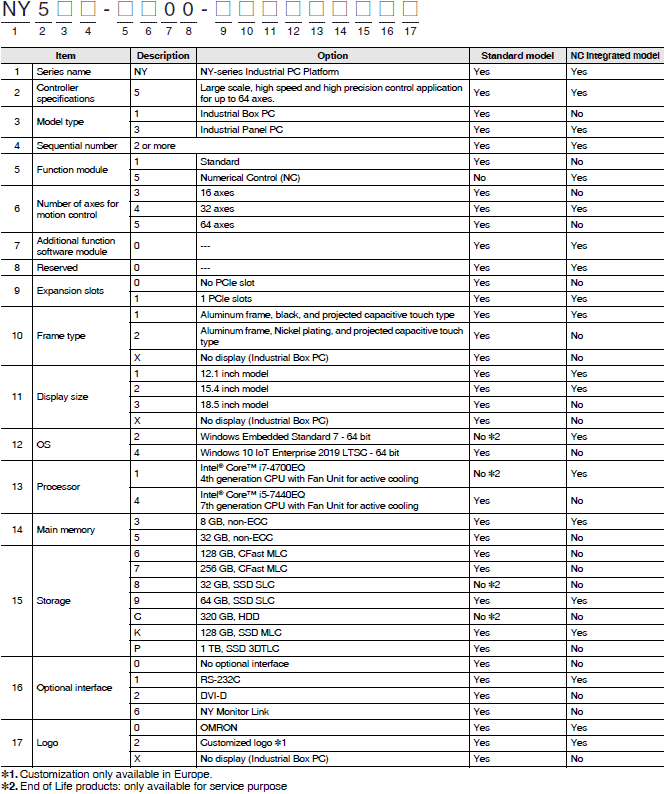

Model Number Structure
![NY53[]-5[]00 種類 1](/Images/3680_lu_118-278922.gif)
Ordering Information
NY-series IPC Machine Controller NC lntegrated Controller
| Product
name |
Specifications | Model | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Operating
system |
CPU
type |
Number
of motion axes |
NC
Func- tion |
RAM
memory (non- ECC type) |
Stor-
age size |
Inter-
face option |
Monitor | ||
| Industrial
Panel PC |
Windows
Embedded Standard 7 64 bit |
Intel®
Core™ i7- 4700EQ |
32 *1 | Enable
*2 |
8 GB | 64 GB
SSD (SLC) |
RS-
232C |
12.1 inches,
1,280 × 800 pixels, 24-bit full color |
NY532-5400-111213910 |
| 128 GB
SSD (MLC) |
NY532-5400-111213K10 | ||||||||
| 64 GB
SSD (SLC) |
15.4 inches,
1,280 × 800 pixels, 24-bit full color |
NY532-5400-112213910 | |||||||
| 128 GB
SSD (MLC) |
NY532-5400-112213K10 | ||||||||
*1. The number of controlled axes of the MC Control Function Module is included.
*2. One CNC Operator License (SYSMAC-RTNC0001L) is attached with the CPU Unit.
Automation Software Sysmac Studio
Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.
| Product
name |
Specifications | Model | ||
|---|---|---|---|---|
| Number of
licenses |
Media | |||
| Sysmac
Studio Standard Edition Ver.1.[][] |
The Sysmac Studio is the software that provides an
integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCAT Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) *1 The Sysmac Studio Standard Edition DVD includes Support Software to set up EtherNet/IP Units, DeviceNet slaves, Serial Communications Units, and Support Software for creating screens on HMIs (CX-Designer). Refer to your OMRON website for details. |
-
(Media only) |
Sysmac
Studio (32-bit) DVD |
SYSMAC-SE200D |
| -
(Media only) |
Sysmac
Studio (64-bit) DVD |
SYSMAC-SE200D-64 | ||
| 1 license
*2 |
- | SYSMAC-SE201L | ||
*1. Model "SYSMAC-SE200D-64" runs on Windows 10 (64 bit).
*2. Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).
Collection of software functional components Sysmac Library
Please download it from following URL and install to Sysmac Studio.
http://www.ia.omron.com/sysmac_library/
Typical Models
| Product | Features | Model |
|---|---|---|
| Vibration Suppression Library | The Vibration Suppression Library is used to suppress residual
vibration caused by the operation of machines. |
SYSMAC-XR006 |
| Device Operation Monitor Library | The Device Operation Monitor Library is used to monitor the
operation of devices such as air cylinders, sensors, motors, and other devices. |
SYSMAC-XR008 |
| Dimension Measurement Library | The Dimension Measurement Library is used to dimension
measurement with ZW-7000/5000 Confocal Fiber Displacement Sensor, or E9NC-TA0 Contact-Type Smart Sensor. |
SYSMAC-XR014 |
Operation Software CNC Operator
Please purchase a DVD or download it from following URL.
http://www.ia.omron.com/cnc-operator/
One CNC Operator License (SYSMAC − RTNC0001L) is attached with the CPU Unit.
| Product
name |
Specifications | Model | ||
|---|---|---|---|---|
| Number of
licenses |
Media | |||
| CNC
Operator |
The CNC Operator is the software that
provides a operation interface for NC programming, debugging and maintenance of CNC machine. CNC Operator runs on the following OS. Windows 7 (32-bit/64-bit version)/ Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) |
---
(Installer only) |
---
(Download) |
SYSMAC-RTNC0000 |
| ---
(Media only) |
DVD | SYSMAC-RTNC0000D | ||
| CNC
Operator License |
The one license key ( hardware key, USB
dongle). The CNC Operator needs license key. |
1 license | --- | SYSMAC-RTNC0001L |
| CNC
Operator Software Development Kit |
The CNC Operator Software Development Kit
provides a environment for customization of CNC Operator. Supported execution environment: .NET Framework (4.6.1) Development environment: Visual Studio 2013/2015 Development languages: C# |
--- | DVD | SYSMAC-RTNC0101D |
Accessories
Optional Hardware
| Product name | Specifications | Model |
|---|---|---|
| SD Memory Cards | Card type: SD Card
Capacity: 2 GB Format: FAT16 |
HMC-SD291 |
| Card type: SDHC Card
Capacity: 4 GB Format: FAT32 |
HMC-SD492 | |
| Card type: SDHC Card
Capacity: 16 GB Format: FAT32 |
HMC-SD1A1 | |
| USB Flash Drives | Capacity: 2 GB | FZ-MEM2G |
| Capacity: 8 GB | FZ-MEM8G | |
| Storage Devices | Storage type: HDD
Capacity: 320 GB |
NY000-AH00 *3 |
| Storage type: SSD SLC
Capacity: 32 GB |
NY000-AS00 *3 | |
| Storage type: SSD SLC
Capacity: 64 GB |
NY000-AS01 | |
| Storage type: SSD SLC
Capacity: 64 GB |
NY000-AS03 | |
| Storage type: SSD MLC
Capacity: 128 GB |
NY000-AS04 | |
| Storage type: SSD 3DTLC
Capacity: 1 TB |
NY000-AS07 | |
| Storage type: CFast MLC
Capacity: 128 GB |
NY000-AT01 | |
| Storage type: CFast MLC
Capacity: 256 GB |
NY000-AT02 | |
| DVI Cables | Cable length: 2 m
Supports DVI-D Minimum bend radius: 36 mm |
NY000-AC00 2M |
| Cable length: 5 m
Supports DVI-D Minimum bend radius: 36 mm |
NY000-AC00 5M | |
| Industrial Monitor | • LCD touchscreen
• Multi-touch functionality • Supply voltage: 24 VDC • Up to 1,280 x 800 pixels at 60 Hz • 2 USB Type-A Connectors • Programmable brightness control • Standard and 100 m cable models are available. |
NYM1[]W-C1[][][] |
| Power Supply | • Output voltage: 24 VDC
• Push-In Plus terminal blocks |
S8VK-G[][][]24 |
| • Output voltage: 24 VDC
• EtherNet/IP, Modbus TCP-Compatible |
S8VK-X[][][]24A-EIP | |
| • Output voltage: 24 VDC
• Compact |
S8VK-S[][][]24 | |
| • Output voltage: 24 VDC
• Three-phase 200-V Power Supplies |
S8VK-WA[][][]24 | |
| UPS *2 | Output voltage during backup operation: 24 VDC ± 5% | S8BA |
| UPS Communication Cable | Cable length: 2 m
Signals for • Signal output (BL, TR, BU, WB) • Remote ON/OFF input • UPS Stop Signal input (BS) |
S8BW-C02 |
Note: Orders for NY000-AS02 are no longer accepted, as of November 30, 2018.
*2. Revision number 04 or higher.
The revision number of the UPS can be retrieved from the serial number label on the product and the product packaging.
![NY53[]-5[]00 種類 14](/Images/3680_lu_818-278923.gif)
| Item | Description |
|---|---|
| 1 | Product code |
| 2 | Product period and sequential number |
| 3 | Revision number |
| 4 | RoHS status |
*3. End of Life: only available for support purpose
Spare Parts
The following spare parts for the Industrial PC are available.
| Product name | Specifications | Model |
|---|---|---|
| Battery | One battery is supplied with the Industrial PC. The battery supplies power to the real-
time clock. The battery is located inside the Industrial PC. Service life: 5 years at 25°C |
CJ1W-BAT01 |
| Fan Unit | The Fan Unit is available for the Industrial PC that has active cooling.
Service life: 70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity. Shelf life: 6 months This is the storage limitation with no power supplied. |
NY000-AF00 |
| Accessory Kit | Replacement kit containing all accesories supplied with Industrial PC.
• Power connector • I/O connector • Drive bracket for drive installation • 4 mounting screws for drive installation • PCIe Card support for PCIe Card installation • PCIe Card clip for PCIe Card installation |
NY000-AK00 |
| Power connectors (10 pcs) for Industrial Box PC and Industrial Panel PC | NY000-AK01 |
Installed Support Software
| Item | Specifications |
|---|---|
| Industrial PC Support Utility | The Industrial PC Support Utility is a software utility to assist in diagnosing and resolving
problems of the Industrial PC. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial PC Tray Utility | The Industrial PC Tray Utility is a software utility that provides information about the current
state of the Industrial PC, its related devices, and associated software. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial PC System API | The Industrial PC System API allows programmers to create programs that can retrieve
information or set an indicator status of the Industrial PC. The API makes use of the included IPC System Service to manage the hardware. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor Utility | The Industrial Monitor Utility provides a user interface to control settings and display details
of connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor
Brightness Utility |
The Industrial Monitor Brightness Utility is a small software utility that allows you to control
the brightness of the screen backlight of all connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor API | The Industrial Monitor API allows programmers to create applications that can control the
hardware features and retrieve information from connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial PC Rescue Disk
Creator |
The Industrial PC Rescue Disk Creator creates a USB Rescue Disk which can be used to
back-up and restore the Omron IPC Operating System. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
Recommended EtherCAT and EtherNet/IP Communications Cables
Use a straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (aluminum tape and braiding) for EtherCAT.
For EtherNet/IP, required specification for the communications cables varies depending on the baud rate.
For 100BASE-TX/10BASE-T, use a straight or cross STP (shielded twisted-pair) cable of category 5 or higher.
For 1000BASE-T, use a straight or cross STP cable of category 5e or higher with double shielding (aluminum tape and braiding).
Cabel with Connectors
| Item | Appearance | Recommended
manufacturer |
Cable
length (m) |
Model |
|---|---|---|---|---|
| Cable with Connectors on Both Ends
(RJ45/RJ45) Standard RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH *2 Cable color: Yellow *3 |
 |
OMRON | 0.3 | XS6W-6LSZH8SS30CM-Y |
| 0.5 | XS6W-6LSZH8SS50CM-Y | |||
| 1 | XS6W-6LSZH8SS100CM-Y | |||
| 2 | XS6W-6LSZH8SS200CM-Y | |||
| 3 | XS6W-6LSZH8SS300CM-Y | |||
| 5 | XS6W-6LSZH8SS500CM-Y | |||
| Cable with Connectors on Both Ends
(RJ45/RJ45) Rugged RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Right blue |
 |
OMRON | 0.3 | XS5W-T421-AMD-K |
| 0.5 | XS5W-T421-BMD-K | |||
| 1 | XS5W-T421-CMD-K | |||
| 2 | XS5W-T421-DMD-K | |||
| 5 | XS5W-T421-GMD-K | |||
| 10 | XS5W-T421-JMD-K | |||
| Cable with Connectors on Both Ends
(M12 Straight/M12 Straight) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black |
 |
OMRON | 0.5 | XS5W-T421-BM2-SS |
| 1 | XS5W-T421-CM2-SS | |||
| 2 | XS5W-T421-DM2-SS | |||
| 3 | XS5W-T421-EM2-SS | |||
| 5 | XS5W-T421-GM2-SS | |||
| 10 | XS5W-T421-JM2-SS | |||
| Cable with Connectors on Both Ends
(M12 Straight/RJ45) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Rugged RJ45 plugs type Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black |
 |
OMRON | 0.5 | XS5W-T421-BMC-SS |
| 1 | XS5W-T421-CMC-SS | |||
| 2 | XS5W-T421-DMC-SS | |||
| 3 | XS5W-T421-EMC-SS | |||
| 5 | XS5W-T421-GMC-SS | |||
| 10 | XS5W-T421-JMC-SS |
*1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m,
7.5 m, 10 m, 15 m, 20 m.
Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3. Cable colors are available in yellow, green, and blue.
*4. For details, contact your OMRON representative.
Cables / Connectors
| Item | Recommended
manufacturer |
Model | ||
|---|---|---|---|---|
| Products for EtherCAT or
EtherNet/IP (1000BASE-T *3/ 100BASE-TX) |
Wire Gauge and Number
of Pairs: AWG24, 4-pair Cable |
Cables | Hitachi Metals, Ltd. | NETSTAR-C5E SAB
0.5 × 4P CP *1 |
| Kuramo Electric Co. | KETH-SB *1 | |||
| RJ45
Connectors |
Panduit Corporation | MPS588-C *1 | ||
| Products for EtherCAT or
EtherNet/IP (100BASE-TX/ 10BASE-T) |
Wire Gauge and Number
of Pairs: AWG22, 2-pair Cable |
Cables | Kuramo Electric Co. | KETH-PSB-OMR *2 |
| JMACS Japan Co., Ltd. | PNET/B *2 | |||
| RJ45 Assembly
Connector  |
OMRON | XS6G-T421-1 *2 | ||
*1. We recommend you to use above Cable, and RJ45 Connector together.
*2. We recommend you to use above Cable, and RJ45 Assembly Connector together.
*3. The products can be used only with the NX701.
Note: Connect both ends of cable shielded wires to the connector hoods.
