E2NC
Smart Proximity Sensor
Smart Proximity Sensor with Separate Amplifier Enables Easily Making Highprecision Sensitivity Settings.
近接感測器 選型工具
只需選擇檢測距離/材料/尺寸等必要條件，即可搜索接近傳感器類型。
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2021年3月1日
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

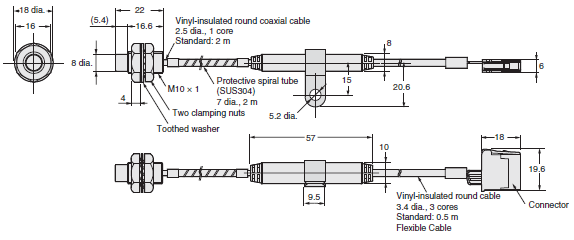

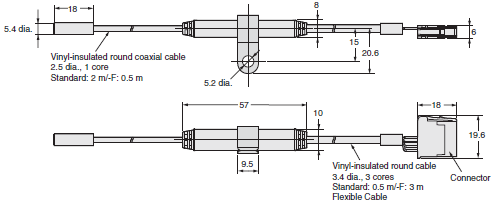

Sensor Heads

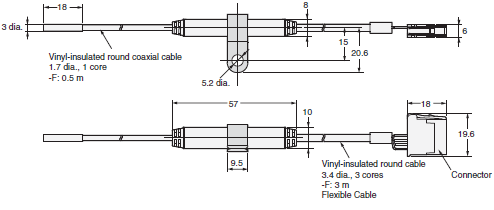

E2NC-EDR6-F
E2NC-ED01(-F)
E2NC-ED01-S
E2NC-ED02(-F)
E2NC-ED02-S
E2NC-EM02(-F)
E2NC-EM02-S

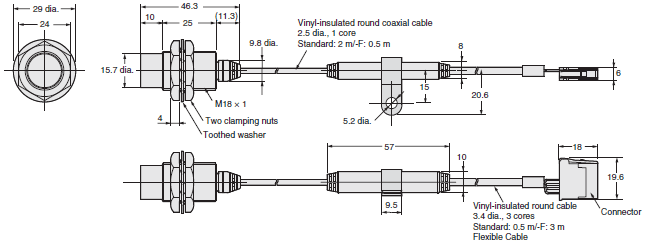

E2NC-EM07M(-F)
E2NC-EM07M-S

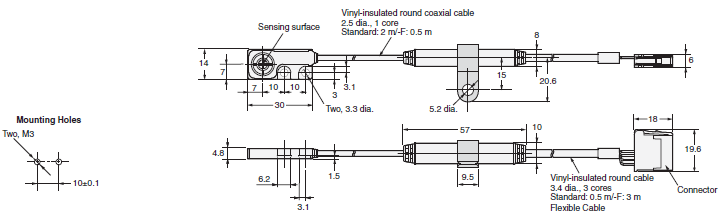

E2NC-EV05(-F)
E2NC-EV05-S
E2NC-EM02H

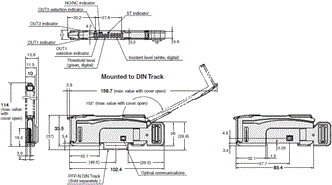

Amplifier Unit

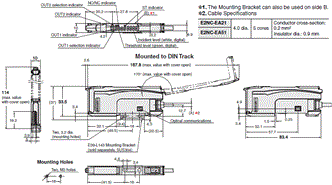

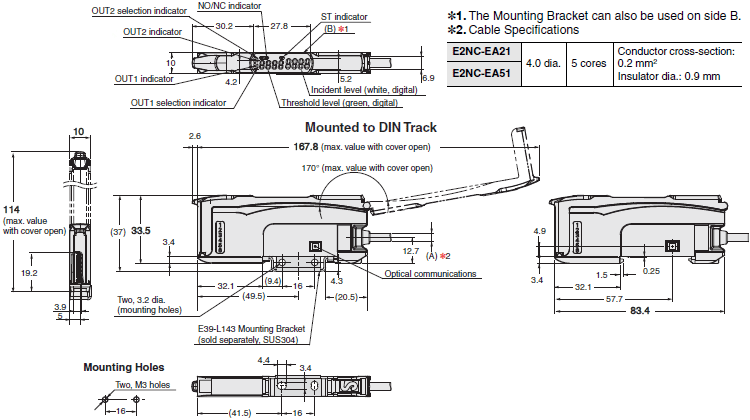

Pre-wired Amplifier Units
E2NC-EA21
E2NC-EA51

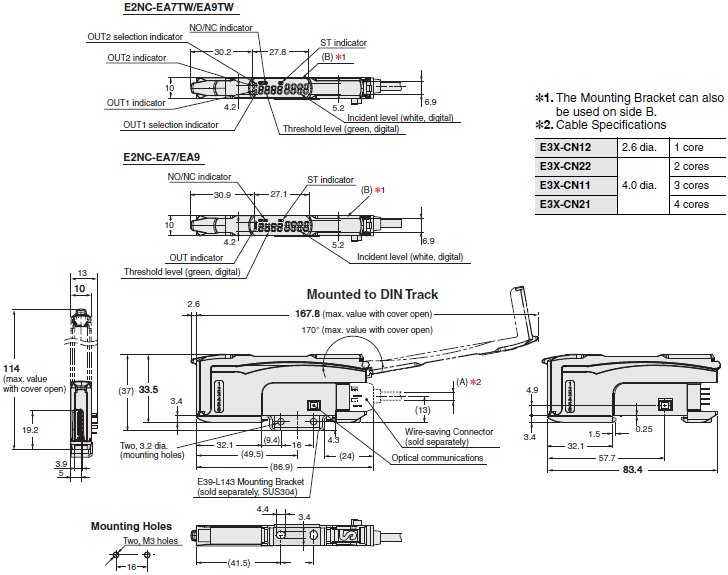

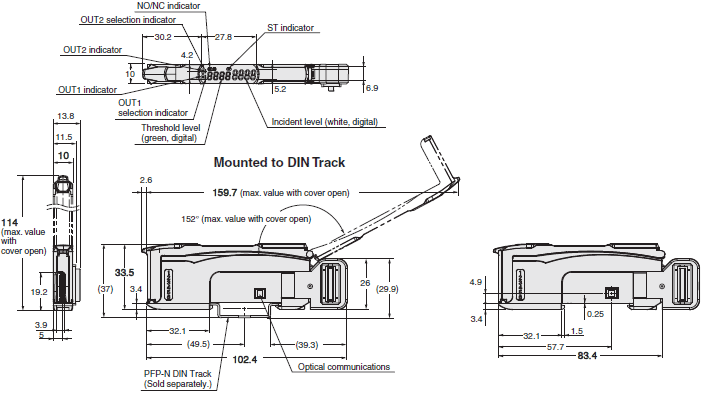

Amplifier Units with Wire-saving Connectors
E2NC-EA7TW
E2NC-EA9TW
E2NC-EA7
E2NC-EA9
Amplifier Unit with Connector for Sensor Communications Unit
E2NC-EA0

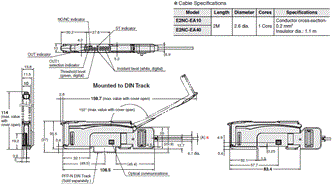

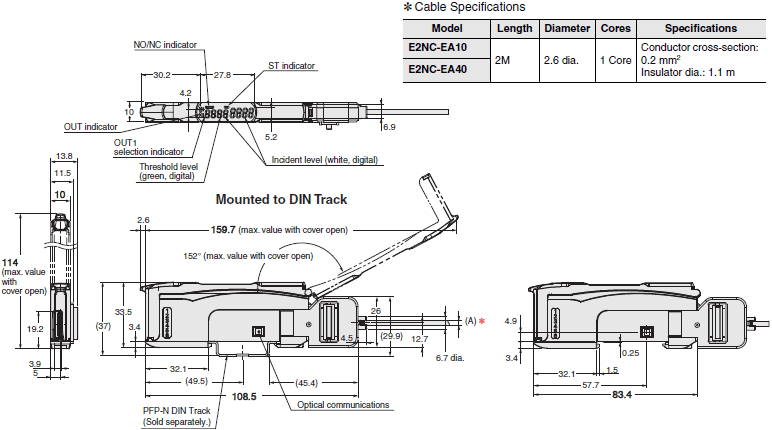

Amplifier Unit with Connector for Sensor Communications Unit (Pre-wired)
E2NC-EA10
E2NC-EA40
Accessories (Sold Separately)
Wire-saving Connectors

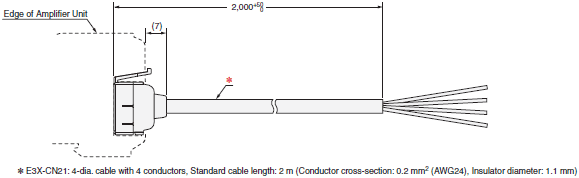

Master Connector
E3X-CN21

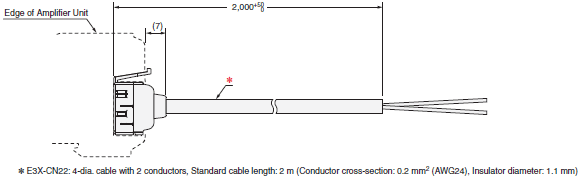

Slave Connector
E3X-CN22

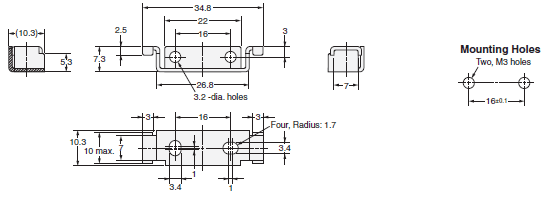

Mounting Bracket
E39-L143
Material: Stainless steel (SUS304)

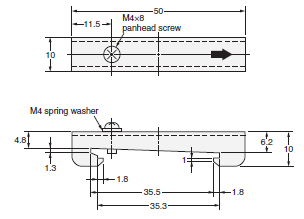

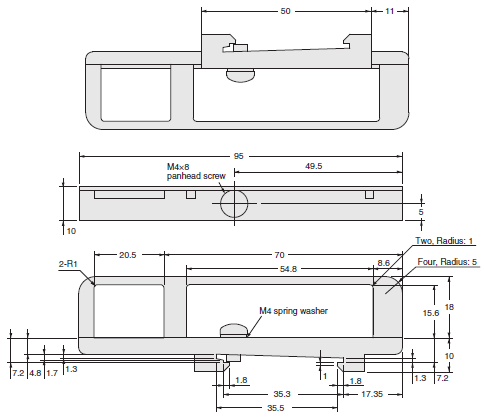

End Plate
PFP-M
Materials: Iron, zinc plating
E39-EP1
Materials: SUS304 CP
更新日期 2021年3月1日
