ES2-HB-N / THB-N

Humidity Sensor, Temperature/Humidity Sensor

ES2-HB-N / THB-N

Detect Humidity within an Accuracy of ±3% in a Compact Body. Controller Set Provides Superior Humidity Control and Temperature/ Humidity Control.

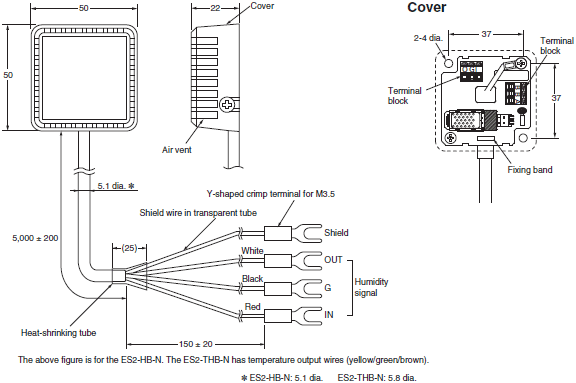

(單位:mm)

ES2-HB-N Humidity Sensor
ES2-THB-N Temperature/Humidity Sensor

ES2-HB-N / THB-N 外觀尺寸 1

ES2-M-N Humidity Sensor Module

ES2-HB-N / THB-N 外觀尺寸 2

Note: Firmly insert the connector all the way in when mounting the ES2-M-N to the Sensor.
