IoT Flow Sensors

E8FC

Detect signs of abnormalities in cooling water, water-soluble coolant, and water-insoluble oil by simultaneous measurement of “flow rate + temperature”

(單位:mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

IoT Flow Sensor

E8FC-25S[]

E8FC 外觀尺寸 4

Adapters

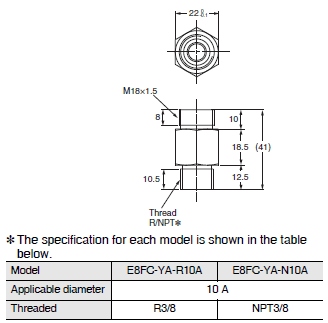

E8FC-YA-R10A
E8FC-YA-N10A

E8FC 外觀尺寸 6

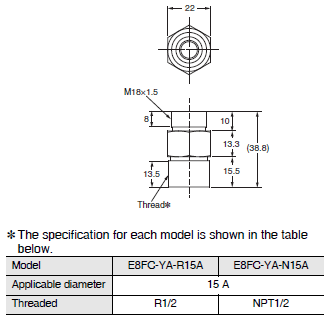

E8FC-YA-R15A
E8FC-YA-N15A

E8FC 外觀尺寸 7

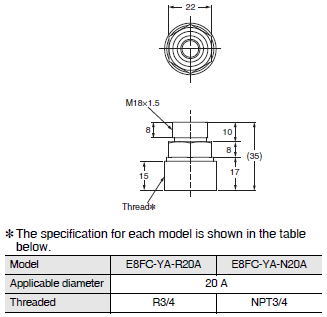

E8FC-YA-R20A
E8FC-YA-N20A

E8FC 外觀尺寸 8

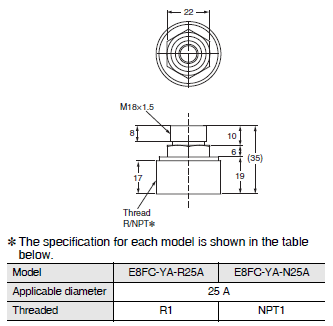

E8FC-YA-R25A
E8FC-YA-N25A

E8FC 外觀尺寸 9

O-ring

E8FC-YL-1

E8FC 外觀尺寸 11

Cables

Sensor I/O Connectors (M12, Socket on one cable end)

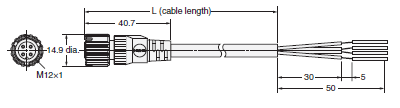

Straight
XS5F-D421-D80-F
XS5F-D421-G80-F

E8FC 外觀尺寸 14

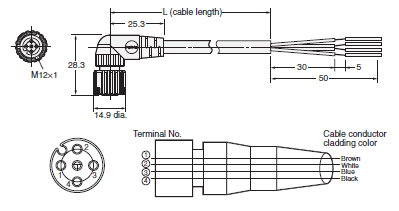

L-shaped
XS5F-D422-D80-F
XS5F-D422-G80-F

E8FC 外觀尺寸 15

Sensor I/O Connectors (M12, Socket and plug on cable ends)

Straight/straight
XS5W-D421-D81-F
XS5W-D421-G81-F

E8FC 外觀尺寸 17

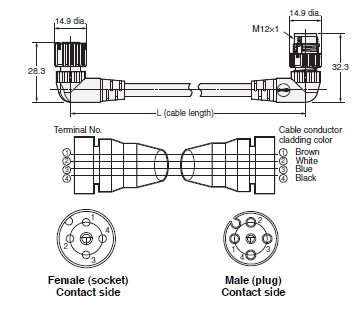

L-shaped/L-shaped
XS5W-D422-D81-F
XS5W-D422-G81-F

E8FC 外觀尺寸 18
