E2EW
Welding Proximity Sensor
Stable detection in lines containing both aluminum and iron
近接感測器 選型工具
只需選擇檢測距離/材料/尺寸等必要條件，即可搜索接近傳感器類型。
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2025年9月1日
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensors
[PREMIUM Model] DC 3-wire

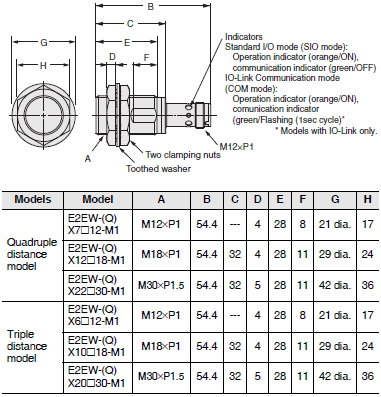

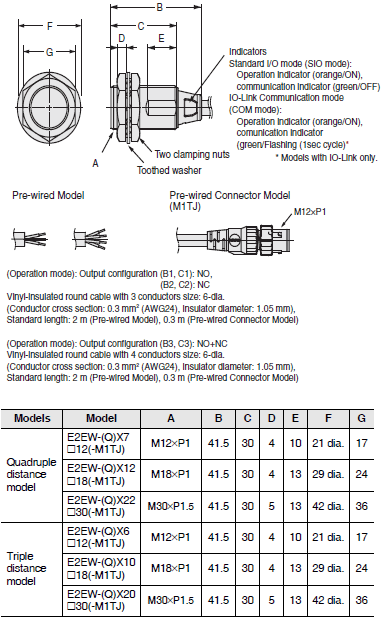

E2EW/E2EW-Q Series (Quadruple distance/Triple distance/Spatter-resistant Quadruple distance, Spatter-resistant Triple distance model)
Pre-wired Model/Pre-wired Connector Model
M12 Connector Model
[BASIC Model] DC 2-wire/DC 3-wire

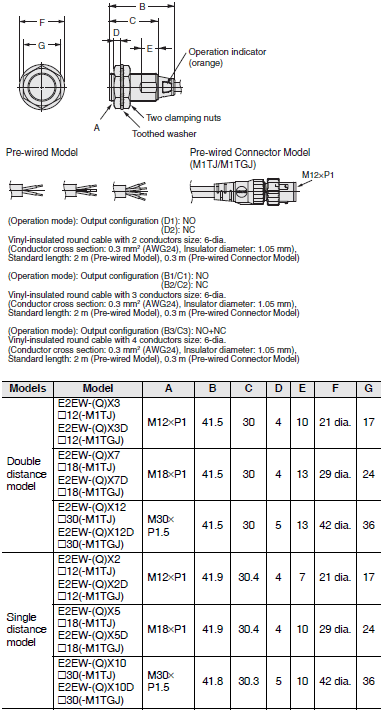

E2EW/E2EW-Q Series (Double distance model/Spatter-resistant Double distance model/Single distance model/Spatter-resistant Single distance model)
Pre-wired Model/Pre-wired Connector Model
M12/M18/M30 Size
Pre-wired Model/Pre-wired Connector Model

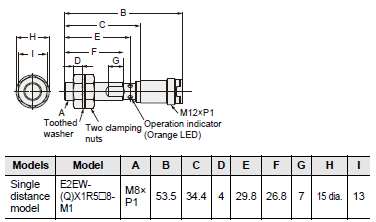

M8 Size
[BASIC Model] DC 3-wire

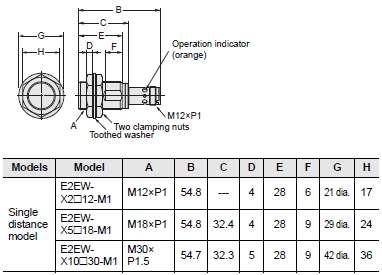

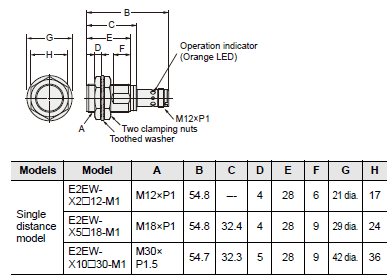

E2EW/E2EW-Q Series (Single distance model/Spatter-resistant Single distance model)
M12 Connector Model
M12/M18/M30 Size
M12 Connector Model
M8 Size
