S8V-CP
DC Electronic Circuit Protector (24 VDC 4 Outputs/8 Outputs Type)
Simplified safety design of DC circuits Reliable DC circuit protection in the event of short circuits or overcurrent Saves space even with multi-channels Sequential start-up of outputs to avoid start-up trouble
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2019年10月1日
Unit

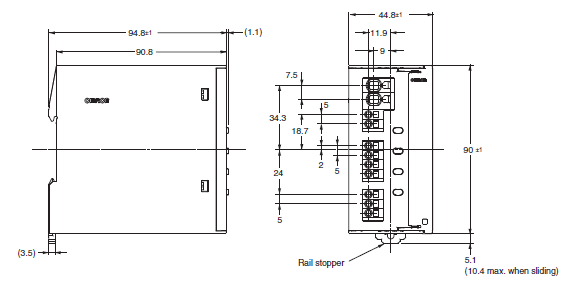

S8V-CP0424

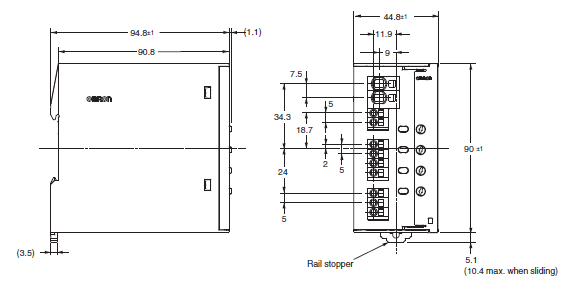

S8V-CP0424S

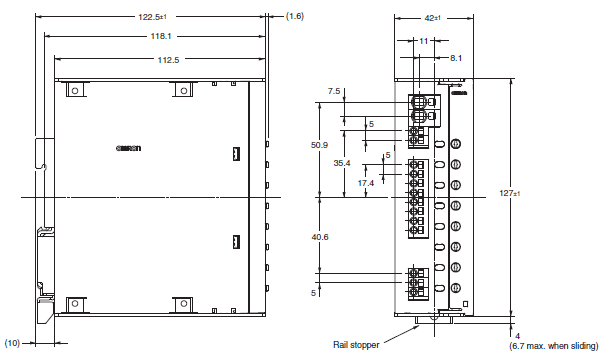

S8V-CP0824
DIN Rail Mounting (Order Separately)

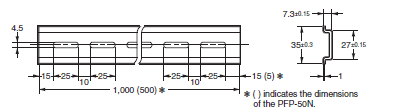

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N

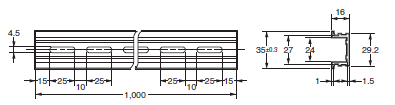

Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.
更新日期 2019年10月1日
