（單位：mm）
J7MC Series
Manual Motor Starter (Motor Protection Circuit Breaker)
MPCB system, protection from Overload, Phase failure and Short Circuit
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2019年10月1日

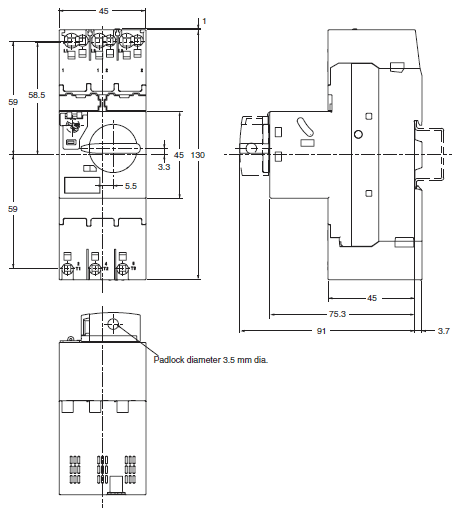

Main unit
J7MC-3P-[] (standard type)
J7MC-3R-[] (high-performance type)
Accessories (Order Separately)
Auxiliary contact unit
J73MC-W-[]
A unit in which the contacts operate in synchronization with the ON/OFF operation of the main unit.
Up to two auxiliary contact units can be mounted on the left and right front panels.
Note: 1. Refer to Catalog for the combinations of accessories that can be mounted simultaneously.
Alarm contact unit
J73MC-K-[]
The contacts in this unit operate when the main unit trips due to an overload, phase failure, or short circuit.
(The contacts are not synchronized with ON/OFF operation of the main unit)
Note: 1. Operation can be checked with a test trip.
2. Refer to Catalog for the combinations of accessories that can be mounted simultaneously.

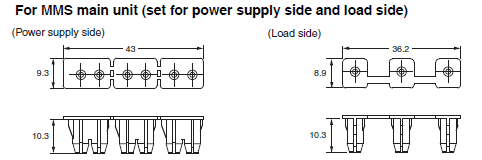

Insulation stop
Guide for insertion into terminal (insertion) holes to stabilize holding of 1mm2 or less stranded wire (direct insertion).
J77MC-A
J77MC-B
DIN Rails (Order Separately)

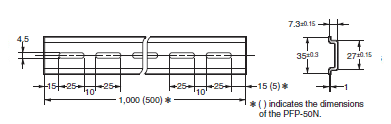

Mounting Rail
PFP-100N
PFP-50N

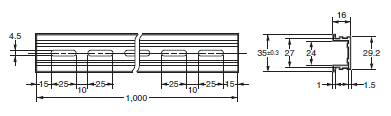

Mounting Rail
PFP-100N2
End Plate
PFP-M
Spacer
PFP-S
