Order according to the format described in Ordering Information.
J7MC Series
Manual Motor Starter (Motor Protection Circuit Breaker)
MPCB system, protection from Overload, Phase failure and Short Circuit
更新日期 2020年4月20日
Model Number Structure

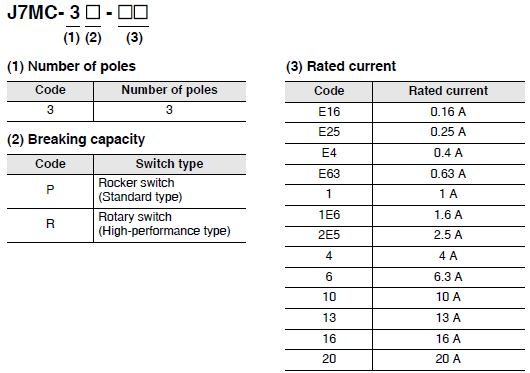

Model Number Legend
Ordering Information
Main unit
Rocker switch (standard type)
| Rated current (A)
(Values in ( ) are the current setting range) |
Model |
|---|---|
| 0.16 (0.1-0.16) | J7MC-3P-E16 |
| 0.25 (0.16-0.25) | J7MC-3P-E25 |
| 0.40 (0.25-0.4) | J7MC-3P-E4 |
| 0.63 (0.4-0.63) | J7MC-3P-E63 |
| 1 (0.63-1) | J7MC-3P-1 |
| 1.6 (1-1.6) | J7MC-3P-1E6 |
| 2.5 (1.6-2.5) | J7MC-3P-2E5 |
| 4 (2.5-4) | J7MC-3P-4 |
| 6.3 (4-6.3) | J7MC-3P-6 |
| 10 (6.3-10) | J7MC-3P-10 |
| 13 (9-13) | J7MC-3P-13 |
| 16 (11-16) | J7MC-3P-16 |
| 20 (14-20) | J7MC-3P-20 |
Rotary switch (high-performance type)
| Rated current (A)
(Values in ( ) are the current setting range) |
Model |
|---|---|
| 0.16 (0.1-0.16) | J7MC-3R-E16 |
| 0.25 (0.16-0.25) | J7MC-3R-E25 |
| 0.40 (0.25-0.4) | J7MC-3R-E4 |
| 0.63 (0.4-0.63) | J7MC-3R-E63 |
| 1 (0.63-1) | J7MC-3R-1 |
| 1.6 (1-1.6) | J7MC-3R-1E6 |
| 2.5 (1.6-2.5) | J7MC-3R-2E5 |
| 4 (2.5-4) | J7MC-3R-4 |
| 6.3 (4-6.3) | J7MC-3R-6 |
| 10 (6.3-10) | J7MC-3R-10 |
| 13 (9-13) | J7MC-3R-13 |
| 16 (11-16) | J7MC-3R-16 |
| 20 (14-20) | J7MC-3R-20 |
Options (Order Separately)
Auxiliary contact unit
| Model | Auxiliary contact |
|---|---|
| J73MC-W-10 | SPST-1NO |
| J73MC-W-01 | SPST-1NC |
Alarm contact unit
| Model | Auxiliary contact |
|---|---|
| J73MC-K-10 | SPST-1NO |
| J73MC-K-01 | SPST-1NC |
Insulation stop
| Model | Minimum order (bag) | |
|---|---|---|
| For main unit | J77MC-A | 1
(10 pcs./bag) |
| For optional unit
(For auxiliary contact unit and alarm contact unit) |
J77MC-B |
For selection of J7MC for each motor capacity, refer to the following table.
| 3-phase standard motor capacity
and full load current (reference values) |
MMS | Magnetic contactor
model |
|||
|---|---|---|---|---|---|
| Main circuit voltage | Capacity [kW] | Current [A] | Standard
type model |
High-performance
type model |
|
| 200-240 VAC | 0.03 | 0.24 | J7MC-3P-E25 | J7MC-3R-E25 | J7KC-12 |
| 0.06 | 0.37 | J7MC-3P-E4 | J7MC-3R-E4 | ||
| 0.1 | 0.68 | J7MC-3P-1 | J7MC-3R-1 | ||
| 0.2 | 1.3 | J7MC-3P-1E6 | J7MC-3R-1E6 | ||
| 0.4 | 2.3 | J7MC-3P-2E5 | J7MC-3R-2E5 | ||
| 0.75 | 3.5 | J7MC-3P-4 | J7MC-3R-4 | ||
| 1.5 | 6.9 | J7MC-3P-10 | J7MC-3R-10 | ||
| 2.2 | 9.5 | ||||
| 2.2 | 9.5 | J7MC-3P-13 | J7MC-3R-13 | ||
| 3.7 | 15.5 | J7MC-3P-16 | J7MC-3R-16 | --- | |
| 3.7 | 15.5 | J7MC-3P-20 | J7MC-3R-20 | --- | |
| 380-440 VAC | 0.02 | 0.1 | J7MC-3P-E16 | J7MC-3R-E16 | J7KC-12 |
| 0.06 | 0.21 | J7MC-3P-E25 | J7MC-3R-E25 | ||
| 0.1 | 0.34 | J7MC-3P-E4 | J7MC-3R-E4 | ||
| 0.12 | 0.41 | J7MC-3P-E63 | J7MC-3R-E63 | ||
| 0.2 | 0.65 | J7MC-3P-1 | J7MC-3R-1 | ||
| 0.4 | 1.15 | J7MC-3P-1E6 | J7MC-3R-1E6 | ||
| 0.75 | 1.8 | J7MC-3P-2E5 | J7MC-3R-2E5 | ||
| 1.5 | 3.5 | J7MC-3P-4 | J7MC-3R-4 | ||
| 2.2 | 4.8 | J7MC-3P-6 | J7MC-3R-6 | ||
| 3.7 | 7.8 | J7MC-3P-10 | J7MC-3R-10 | ||
| 5.5 | 10.5 | J7MC-3P-13 | J7MC-3R-13 | ||
| 7.5 | 13.5 | J7MC-3P-16 | J7MC-3R-16 | --- | |
| 11 | 20 | J7MC-3P-20 | J7MC-3R-20 | --- | |
Note: The 3-phase motor full load current is a reference value. When applying, check the full load current of the motor you will use.
DIN Rails (Order Separately)
Mounting Rail
| Model |
|---|
| PFP-100N |
| PFP-50N |
Mounting Rail
| Model |
|---|
| PFP-100N2 |
End Plate
| Model |
|---|
| PFP-M |
Spacer
| Model |
|---|
| PFP-S |
Note: 1. Order the DIN Rails (Order Separately) in units of ten.
2. Rails conform to DIN standards.
