V600-HA

Reads the 8-bit data (1 byte) of the set address and outputs to the 8 data output lines.

Reads the 16-bit data (2 bytes) of the set address and outputs to the 16 data output lines.

The amplifier has the following three basic functions.

Reads the 8-bit (1 byte) data of the set address and outputs to the 8 data output lines.

Writes on the set address the 8-bit (1 byte) data designated via the 8 data input lines.

Reads the 8-bit data (1 byte) of the set address, compares with the 8-bit (1 byte) data input via the 8 verification data input lines, and outputs the verification result.

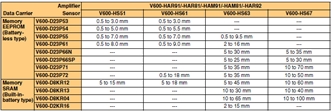

Note:
1. The specifications take fluctuations in ambient temperature and slight differences between products into account.

2. The read distance and write distance are the same.

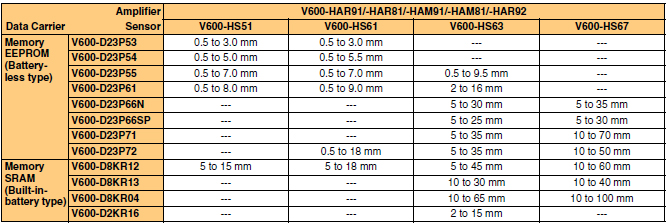

3. Sensor Installation Conditions

V600-HS51: When flush-mounted in iron
Axial offset from the Data Carrier: ±2.0 mm

V600-HS61: When surface-mounted on metal (ferrous)
Axial offset from the Data Carrier: ±2.0 mm

V600-HS63: When surface-mounted on metal (ferrous)
Axial offset from the Data Carrier: ±10.0 mm

V600-HS67: When surface-mounted on metal (ferrous)
Axial offset from the Data Carrier: ±10.0 mm

4. Data Carrier Installation Conditions

When flush-mounted in iron

When surface-mounted on resin (no metal on the backside)

When surface-mounted on metal (ferrous)

When surface-mounted on metal (ferrous)

When the Data Carrier attached to the holder is mounted on a metal (ferrous) surface

5. The transmission distance specified in the specifications is also applicable when the Data Carrier is mounted on non-metallic surfaces.

6. The Data Carrier is stationary.
