E5GN
Basic-type Digital Temperature Controller (48 x 24 mm)
New 48 x 24-mm Basic Temperature Controller with Enhanced Functions and Performance. Improved Indication Accuracy and Preventive Maintenance Function.
此頁記載內容是在依據停產前商品型錄內刊載的資訊，包括商品的特點 /價格 /對應規格 /選購品等，可能會和現狀有所出入。請在選購前再次確認系統的適用性及安全性。
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2012年11月12日
E5GN

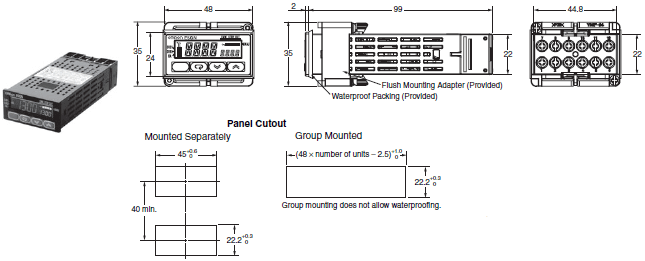

Models with Screw Terminal Blocks
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable
operating temperature specified in the specifications.
• The terminal screw for auxiliary output 2 cannot be tightened while Controllers are group mounted.
• The E58-CIFQ1 cannot be connected when the Temperature Controllers are group mounted.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable
operating temperature specified in the specifications.
• The terminal screw for auxiliary output 2 cannot be tightened while Controllers are group mounted.
• The E58-CIFQ1 cannot be connected when the Temperature Controllers are group mounted.
E5GN-[]-C

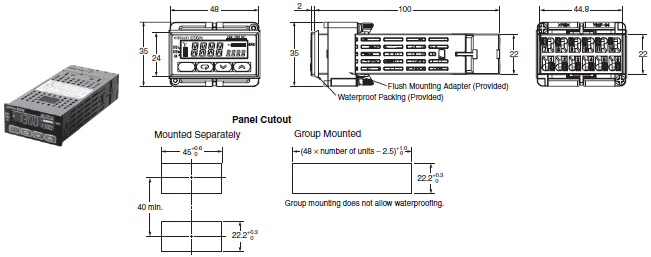

Models with Screwless Clamp Terminal Blocks
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable
operating temperature specified in the specifications.
• The E58-CIFQ1 cannot be connected when the Temperature Controllers are group mounted.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable
operating temperature specified in the specifications.
• The E58-CIFQ1 cannot be connected when the Temperature Controllers are group mounted.
Accessories (Order Separately)

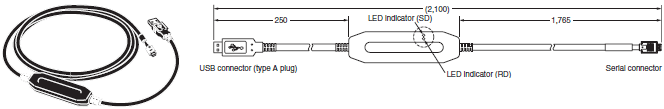

USB-Serial Conversion Cable
E58-CIFQ1
Waterproof Packing
Y92S-32 (for DIN 48 × 24)
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
Current Transformers

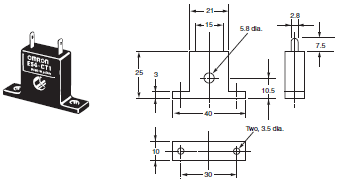

E54-CT1

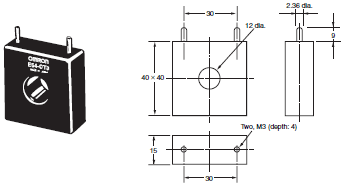

E54-CT3

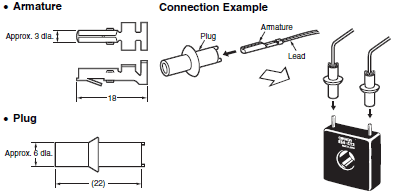

E54-CT3 Accessory
E54-CT1
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω
E54-CT3
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for the Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω
更新日期 2012年11月12日
