E5GN

Basic-type Digital Temperature Controller (48 x 24 mm)

E5GN

New 48 x 24-mm Basic Temperature Controller with Enhanced Functions and Performance. Improved Indication Accuracy and Preventive Maintenance Function.

此頁記載內容是在依據停產前商品型錄內刊載的資訊，包括商品的特點 /價格 /對應規格 /選購品等，可能會和現狀有所出入。請在選購前再次確認系統的適用性及安全性。

相關資訊

更新日期 2015年8月6日

Ratings

Power supply voltage No D in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range 85% to 110% of rated supply voltage
Power
consump-
tion		 E5GN
Screw terminal
block		 100 to 240 VAC: 5.5 VA (max.)
24 VAC/VDC: 3 VA/2 W (max.)
E5GN-[]-C
Screwless clamp
terminal block		 100 to 240 VAC: 5.5 VA (max.)
24 VAC/VDC: 3 VA/2 W (max.)
Sensor input Models with temperature inputs
Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C
Voltage input: 0 to 50 mV
Models with analog inputs
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB.)
Control method ON/OFF control or 2-PID control (with auto-tuning)
Control
outputs		 Relay output SPST-NO, 250 VAC, 2 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V,
10 mA
Voltage output
(for driving SSR)		 Output voltage: 12 VDC ± 15% (PNP), max. load current: 21 mA, with short-circuit protection circuit
Current output 4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000
Auxiliary
outputs		 Number of outputs 1 or 2 max. (Depends on the model.)
Output
specifications		 Relay output: SPST-NO, 250 VAC, 2 A (resistive load), electrical life: 100,000 operations, minimum
applicable load: 5 V, 10 mA
Event
inputs		 Number of inputs 2
External contact
input
specifications		 Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max.
Current flow: Approx. 7 mA per contact
Setting method Digital setting using front panel keys
Indication method 11-segment digital display and individual indicators (7-segment display also possible)
Character height: PV: 7.5 mm, SV: 3.6 mm
Multi SP Up to four set points (SP0 to SP3) can be saved and selected using event inputs, key operations, or serial
communications.
Bank switching Not supported
Other functions Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout
detection (including SSR failure and heater over current detection), 40% AT, 100% AT, MV limiter, input
digital filter, self-tuning, temperature input shift, run/stop, protection functions, control output ON/OFF
counter, extraction of square root, MV change rate limit, logic operations, PV/SV status display, simple
program, automatic cooling coefficient adjustment
Ambient operating temperature -10 to 55 °C (with no condensation or icing), for 3-year warranty: -10 to 50 °C
Ambient operating humidity 25% to 85%
Storage temperature -25 to 65 °C (with no condensation or icing)

Input Ranges

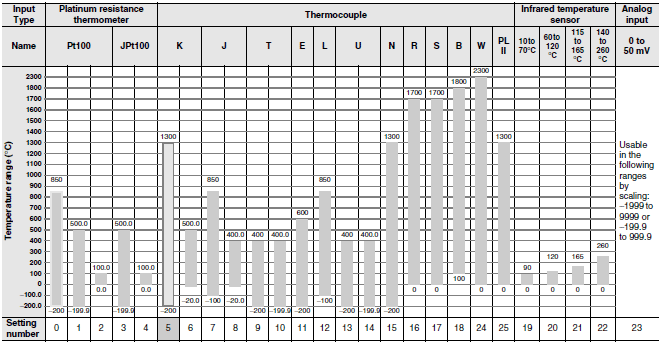

Thermocouple/Platinum Resistance Thermometer (Universal Inputs)

E5GN 額定/性能 3

Shaded settings are the default settings.
The applicable standards for the input types are as follows:
K, J, T, E, N, R, S, B: JIS C 1602-1995, IEC 584-1
L: Fe-CuNi, DIN 43710-1985
U: Cu-CuNi, DIN 43710-1985
W: W5Re/W26Re, ASTM E988-1990
JPt100: JIS C 1604-1989, JIS C 1606-1989
Pt100: JIS C 1604-1997, IEC 751
PL II: According to Platinel II electromotive force charts from BASF (previously Engelhard)

Models with Analog Inputs

Input Type Current Voltage
Input specification 4 to 20 mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V
Setting range Usable in the following ranges by scaling:
-1999 to 9999, -199.9 to 999.9, -19.99 to 99.99 or -1.999 to 9.999
Setting number 0 1 2 3 4

Shaded settings are the default settings.

Alarm Outputs

Each alarm can be independently set to one of the following 13 alarm types. The default is 2: Upper limit.
Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.
Note: For models with heater burnout, SSR failure, and heater overcurrent detection, alarm 1 will be an OR output of the
          alarm selected from the following alarm types and the alarms for heater burnout, SSR failure, and heater
          overcurrent. To output only a heater burnout alarm, SSR failure alarm, and heater overcurrent alarm for alarm 1, set
          the alarm type to 0 (i.e., no alarm function).

Set
value		 Alarm type Alarm output operation Description of function
When alarm value
X is positive		 When alarm value
X is negative
0 Alarm function OFF Output OFF No alarm
1 *1 Upper- and lower-limit 1434_sp_4_1 *2 Set the deviation in the set point by
setting the alarm upper limit (H) and
alarm lower limit (L).
2 Upper-limit 1434_sp_4_2 1434_sp_4_7 Set the upward deviation in the set point
by setting the alarm value (X).
3 Lower-limit 1434_sp_4_3 1434_sp_4_8 Set the downward deviation in the set
point by setting the alarm value (X).
4 *1 Upper- and lower-limit
range		 1434_sp_4_4 *3 Set the deviation in the set point by
setting the alarm upper limit (H) and
alarm lower limit (L).
5 *1 Upper- and lower-limit with
standby sequence
1434_sp_4_1
*5		 *4 A standby sequence is added to the
upper- and lower-limit alarm (1). *6
6 Upper-limit with standby
sequence		 1434_sp_4_2 1434_sp_4_7 A standby sequence is added to the
upper-limit alarm (2). *6
7 Lower-limit with standby
sequence		 1434_sp_4_3 1434_sp_4_8 A standby sequence is added to the
lower-limit alarm (3). *6
8 Absolute-value upper-limit 1434_sp_4_5 1434_sp_4_9 The alarm will turn ON if the process
value is larger than the alarm value (X)
regardless of the set point.
9 Absolute-value lower-limit 1434_sp_4_6 1434_sp_4_10 The alarm will turn ON if the process
value is smaller than the alarm value (X)
regardless of the set point.
10 Absolute-value upper-limit
with standby sequence		 1434_sp_4_5 1434_sp_4_9 A standby sequence is added to the
absolute-value upper- limit alarm (8). *6
11 Absolute-value lower-limit
with standby sequence		 1434_sp_4_6 1434_sp_4_10 A standby sequence is added to the
absolute-value lower-limit alarm (9). *6
12 LBA (alarm 1 type only) --- Refer to Data Sheet.
13 PV change rate alarm --- Refer to Data Sheet.

*1. With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are
       expressed as "L" and "H."
*2. Set value: 1, Upper- and lower-limit alarm

E5GN 額定/性能 8

*3. Set value: 4, Upper- and lower-limit range

E5GN 額定/性能 9

*4. Set value: 5, Upper- and lower-limit with standby sequence
       For Upper- and Lower-Limit Alarm Described Above
       • Case 1 and 2
          Always OFF when the upper-limit and lower-limit hysteresis overlaps.
       • Case 3: Always OFF
*5. Set value: 5, Upper- and lower-limit with standby sequence
        Always OFF when the upper-limit and lower-limit hysteresis overlaps.
*6. Refer to the E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156) for
       information on the operation of the standby sequence.
*7. Refer to the E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156) for
       information on the loop burnout alarm (LBA).
*8. Refer to the E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156) for
       information on the PV change rate alarm.

Characteristics

Indication accuracy Thermocouple: *1
(± 0.3% of indicated value or ± 1 °C, whichever is greater) ± 1 digit max.
Platinum resistance thermometer input:
(± 0.2% of indicated value or ± 0.8 °C, whichever is greater) ± 1 digit max.
Analog input: ± 0.2% FS ± 1 digit max.
CT input: ± 5% FS ± 1 digit max.
Influence of temperature
*2		 Thermocouple input (R, S, B, W, PL II):
(± 1% of PV or ± 10 °C, whichever is greater) ± 1 digit max.
Other thermocouple input: *3
(± 1% of PV or ± 4 °C, whichever is greater) ± 1 digit max.
Platinum resistance thermometer input:
(± 1% of PV or ± 2 °C, whichever is greater) ± 1 digit max.
Analog input: (± 1%FS) ± 1 digit max.
Influence of voltage *2
Influence of EMS.
(at EN 61326-1)
Input sampling period 250 ms
Hysteresis Models with thermocouple/platinum resistance thermometer input (universal input): 0.1 to 999.9 EU (in units of 0.1 EU) *4
Models with analog input: 0.01 to 99.99% FS (in units of 0.01% FS)
Proportional band (P) Models with thermocouple/platinum resistance thermometer input (universal input): 0.1 to 999.9 EU (in units of 0.1 EU) *4
Models with analog input: 0.1 to 999.9% FS (in units of 0.1% FS)
Integral time (I) 0 to 3999 s (in units of 1 s)
Derivative time (D) 0 to 3999 s (in units of 1 s) *5
Control period 0.5, 1 to 99 s (in units of 1 s)
Manual reset value 0.0 to 100.0% (in units of 0.1%)
Alarm setting range -1999 to 9999 (decimal point position depends on input type)
Affect of signal source
resistance		 Thermocouple: 0.1°C/Ω max. (100 Ω max.)
Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 2,300 VAC, 50 or 60 Hz for 1 min (between terminals with different charge)
Vibration
resistance		 Malfunction 10 to 55 Hz, 20 2 for 10 min each in X, Y, and Z directions
Destruction 10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions
Shock
resistance		 Malfunction 100 2, 3 times each in X, Y, and Z directions
Destruction 300 2, 3 times each in X, Y, and Z directions
Weight Controller: Approx. 90 g, Mounting Bracket: Approx. 10 g
Degree of protection Front panel: IP66, Rear case: IP20, Terminals: IP00
Memory protection Non-volatile memory (number of writes: 1,000,000 times)
Setup Tool CX-Thermo version 4.2 or higher
Setup Tool port Provided on the side of the E5GN. Connect this port to the computer when using the Setup Tool. An E58-CIFQ1 USB-Serial Conversion Cable is required to connect the computer to the port on the side of the E5GN. *6
Standards Approved
standards		 UL 61010-1, CSA C22.2 No. 1010-1
Conformed
standards		 EN 61010-1 (IEC 61010-1): Pollution level 2, overcurrent category II
EMC EMI: EN 61326-1 *7
Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A
Noise Terminal Voltage: EN 55011 Group 1, class A
EMS: EN 61326-1 *7
ESD Immunity: EN 61000-4-2
Electromagnetic Field Immunity: EN 61000-4-3
Burst Noise Immunity: EN 61000-4-4
Conducted Disturbance Immunity: EN 61000-4-6
Surge Immunity: EN 61000-4-5
Power Frequency Magnetic Field Immunity: EN 61000-4-8
Voltage Dip/Interrupting Immunity: EN 61000-4-11

*1. The indication accuracy of K thermocouples in the −200 to 1300°C range, T and N thermocouples at a temperature of
       −100°C max., and U and L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the B
       thermocouple at a temperature of 400°C max. is not specified. The indication accuracy of B thermocouples in the 400
       to 800°C range is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature of 200°C max.
       is ±3°C ±1 digit max. The indication accuracy of W thermocouples is ±0.3 of PV or ±3°C, whichever is greater, ±1
       digit max. The indication accuracy of PL II thermocouples is ±0.3 of PV or ±2°C, whichever is greater, ± 1 digit max.
*2. Ambient temperature: −10°C to 23°C to 55°C, Voltage range: −15% to 10% of rated voltage
*3. K thermocouple at −100°C max.: ±10° max.
*4. “EU” stands for Engineering Unit and is used as the unit after scaling. For a temperature sensor, the EU is °C or °F.
*5. When robust tuning (RT) is ON, the differential time is 0.0 to 999.9 (in units of 0.1 s).
*6. External serial communications (RS-232C or RS-485) and cable communications for the Setup Tool can be used at
       the same time.
*7. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

USB-Serial Conversion Cable

Applicable OS Windows XP/Vista/7/8
Applicable software CX-Thermo version 4 or higher
Applicable models E5AN/E5EN/E5CN/E5CN-U/E5AN-H/E5EN-H/E5CN-H/E5GN
USB interface standard Conforms to USB Specification 1.1.
DTE speed 38400 bps
Connector specifications Computer: USB (type A plug)
Temperature Controller: Setup Tool port (on bottom of Controller)
Power supply Bus power (Supplied from USB host controller.)
Power supply voltage 5 VDC
Current consumption 70 mA
Ambient operating temperature 0 to 55°C (with no condensation or icing)
Ambient operating humidity 10% to 80%
Storage temperature - 20 to 60°C (with no condensation or icing)
Storage humidity 10% to 80%
Altitude 2,000 m max.
Weight Approx. 100 g

Note: A driver must be installed in the personal computer. Refer to installation information in the operation manual for the
          Conversion Cable.

Communications Specifications

Transmission line connection method RS-485: Multipoint
RS-232C: Point-to-point
Communications RS-485 (two-wire, half duplex), RS-232C
Synchronization method Start-stop synchronization
Protocol CompoWay/F, SYSWAY, or Modbus
Baud rate 1200, 2400, 4800, 9600, 19200, 38400, or 57600 bps
Transmission code ASCII
Data bit length * 7 or 8 bits
Stop bit length * 1 or 2 bits
Error detection Vertical parity (none, even, odd)
Frame check sequence (FCS) with SYSWAY
Block check character (BCC) with CompoWay/F or CRC-16 Modbus
Flow control None
Interface RS-485, RS-232C
Retry function None
Communications buffer 217 bytes
Communications response wait time 0 to 99 ms
Default: 20 ms

* The baud rate, data bit length, stop bit length, and vertical parity can be individually set using the Communications
   Setting Level.

Current Transformer (Order Separately) Ratings

Dielectric strength 1,000 VAC for 1 min
Vibration resistance 50 Hz, 98 m/s2
Weight E54-CT1: Approx. 11.5 g, E54-CT3: Approx. 50 g
Accessories (E54-CT3 only) Armatures (2)
Plugs (2)

Heater Burnout Alarms, SSR Failure Alarms, and Heater Overcurrent Alarms

CT input (for heater current detection) Models with detection for single-phase heaters: One input
Maximum heater current 50 A AC
Input current indication accuracy ±5% FS ±1 digit max.
Heater burnout alarm setting range *1 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection ON time: 100 ms
SSR failure alarm setting range *2 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection OFF time: 100 ms
Heater overcurrent alarm setting range *3 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection ON time: 100 ms

*1. For heater burnout alarms, the heater current will be measured when the control output is ON, and the output
       assigned to the alarm 1 function will turn ON if the heater current is lower than the set value (i.e., heater burnout
       detection current value).
*2. For SSR failure alarms, the heater current will be measured when the control output is OFF, and the output assigned
       to the alarm 1 function will turn ON if the heater current is higher than the set value (i.e., SSR failure detection current
       value).
*3. For heater overcurrent alarms, the heater current will be measured when the control output is ON, and the output
       assigned to the alarm 1 function will turn ON if the heater current is higher than the set value (i.e., heater overcurrent
       detection current value).

Electrical Life Expectancy Curve for Relays (Reference Values)

E5GN 額定/性能 20

更新日期 2015年8月6日

產品類別

產品資訊

解決方案

支援服務

關於我們

聯絡我們

網路商店

線上客服

産品技術客服中心
008-0186-3102

Site Information

© Copyright OMRON Corporation 1996 - 2023. All Rights Reserved.
