XW6T
Common Terminal Blocks with Visible Indicators
Our Value Design Products Increase the Value of Your Control Panels. Contributing to downsize control panels and save work. It can proper wiring without skillful operators, because of indicators make wiring completion simply visible.
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2019年4月1日
Model

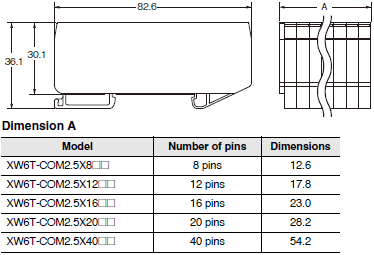

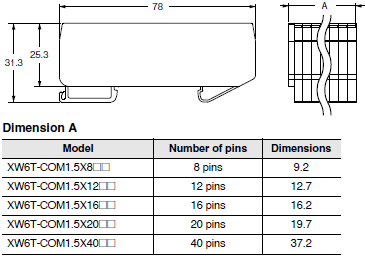

XW6T-COM1.5X[][][][]
XW6T-COM2.5X[][][][]
Accessories (Order separately)
(For addition) Terminal Block

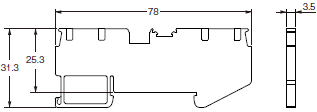

XW6T-COM1.5

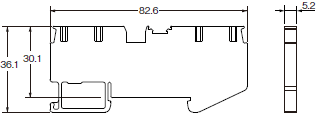

XW6T-COM2.5
Short Bars

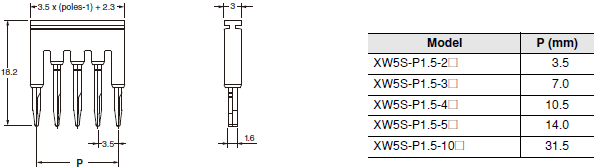

XW5S-P1.5-[]

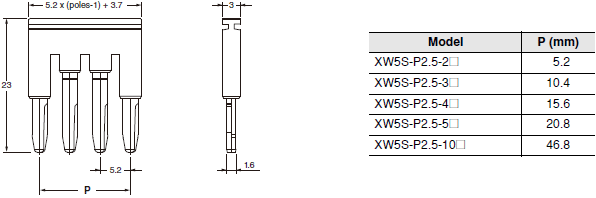

XW5S-P2.5-[]
End Cover
XW6E-COM1.5
XW6E-COM2.5
End Brackets

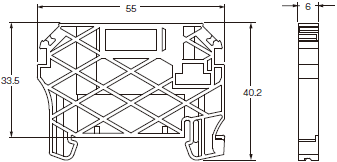

XW5Z-EP6
更新日期 2019年4月1日
