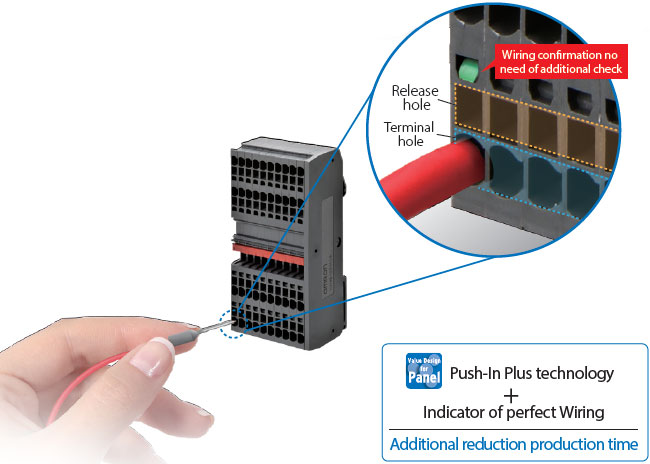

A green indicator comes out when a cable is insert deeply into the terminal hole giving immediate confirmation of the proper wiring insertion.
Enabling secure wiring.
Common Terminal Blocks with Visible Indicators
更新日期 2020年9月14日
A green indicator comes out when a cable is insert deeply into the terminal hole giving immediate confirmation of the proper wiring insertion.
Enabling secure wiring.

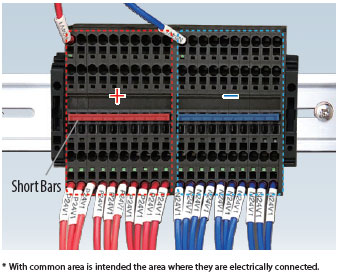

Colored Short Bars are built in. You can easily know the common area thanks to the visible Short Bars placed at the front face of the Terminal Blocks.

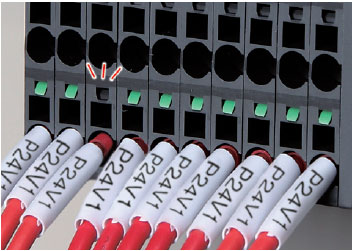

You can immediately judge the wiring state thanks to the visible indicators avoiding errors, such as non-wiring and incomplete wiring.
Simply check the indicators for wiring maintenance.

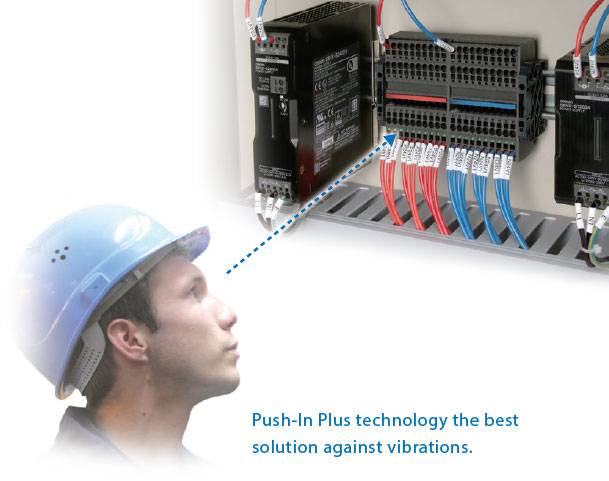

No retightening is required, the terminals are firmly hold in place thanks to Push-In Plus technology.

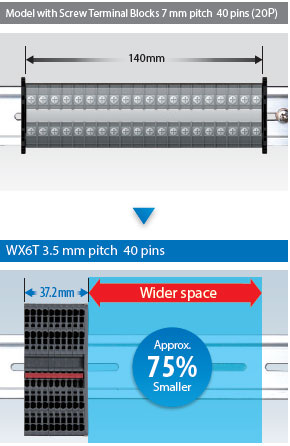

Example of 40 pins

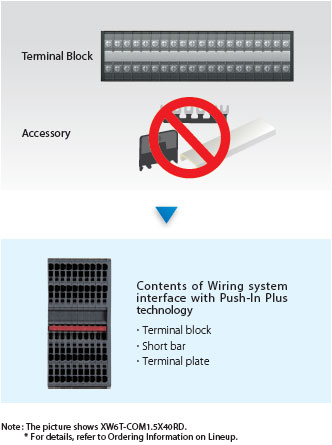

Necessary Items for a Wiring System Interface Are Contained in a Set.

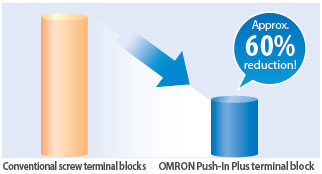

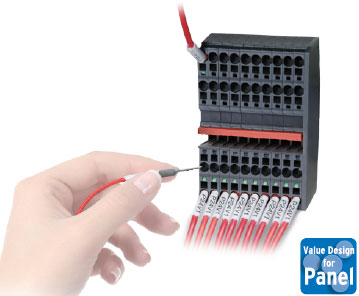

Now you can use Push-In Plus technology to reduce wiring time and work: Just insert wires, no tools required.
OMRON’s Push-In Plus technology are as easy as inserting to an earphone jack. They help reduce the work load and improve wiring quality.
Even though less insertion force is required, the wires are held firmly in place. The advanced mechanism and the manufacturing technology produce a spring that ensures better workability and reliability. The same strength as screw terminal blocks is provided.
*Information for Push-In Plus and screw terminal blocks is based on OMRON's actual measurement value data.
If you use Push-In Plus technology you don't need to tighten screws, necessary for screw TB.
You can insert wires with ferrules or you can also insert solid wires or stranded wires.
Thanks to the holding mechanism of the screw you can easily wire stranded cables using both hands.
