（單位：mm）
2026/03 停產商品
E8Y-P
Pressure Display
Micropressure Sensor with Easy-to-Read Digital Display
此頁記載內容是在依據停產前商品型錄內刊載的資訊，包括商品的特點 /價格 /對應規格 /選購品等，可能會和現狀有所出入。請在選購前再次確認系統的適用性及安全性。
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2023年4月3日
Devices

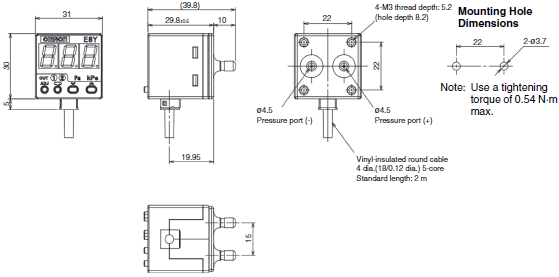

Standard port (4.5-dia. pressure port) type
E8Y-PR2C
E8Y-PR5C
E8Y-P1C
E8Y-P2C
E8Y-P5C
E8Y-P5B
E8Y-PR2Y
E8Y-PR5Y
E8Y-P1Y
E8Y-P2Y
E8Y-P5Y

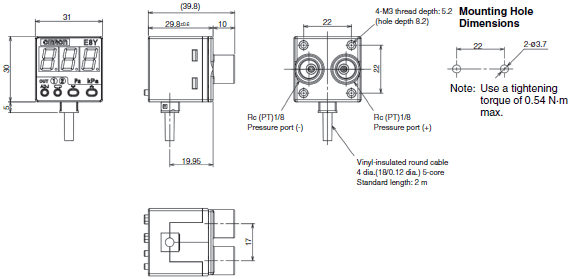

Die-cast port (Pressure port Rc (PT) 1/8) type
E8Y-PR2C-R
E8Y-PR5Y-R
E8Y-P2C-R
E8Y-P5C-R
E8Y-P2Y-R
E8Y-P5Y-R
Accessories (included)
Mounting Brackets A
Mounting Brackets B
Panel Mounting/Dimensions
E89-Y2
(This model comes with a protective cover, guide, frame, and holder. Either the □36 or □45 panel can be used.)

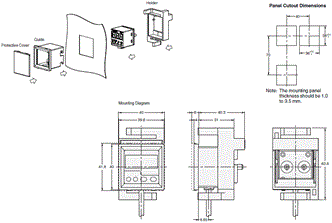

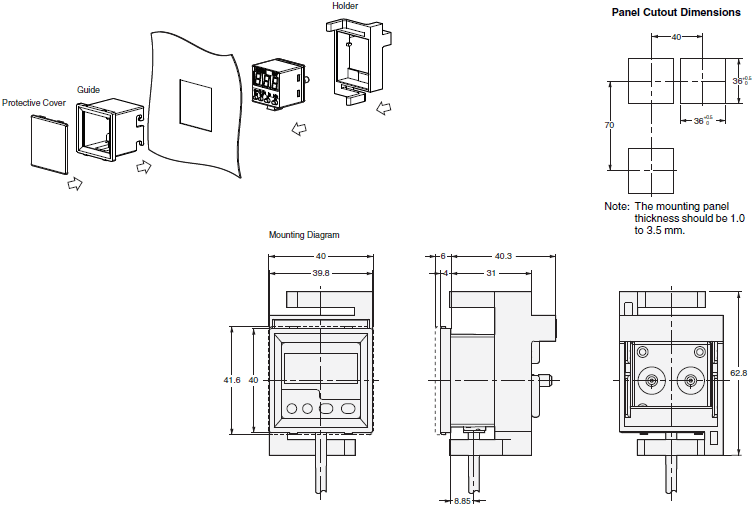

When mounted with the □36 panel
* Pressure display model. Cannot be used with E8Y-[]-F[] Series differential pressure flowmeters.

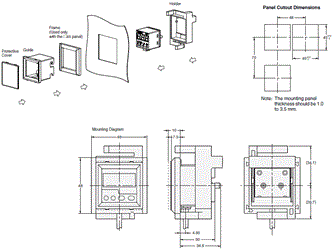

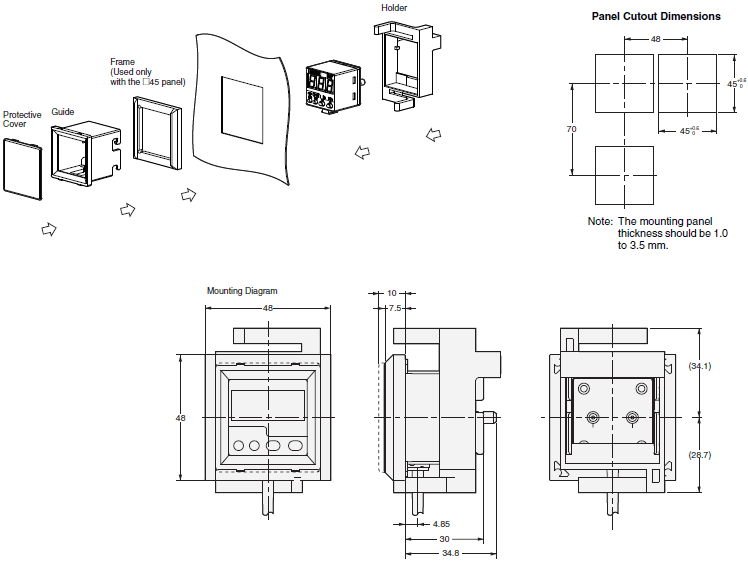

When mounted with the □45 panel
更新日期 2023年4月3日
產品類別
- 感測器
-
壓力感測器 / 流量感測器
-
停產商品
- E8Y-P
-
停產商品
-
