E8Y-P

Pressure Display

E8Y-P

Micropressure Sensor with Easy-to-Read Digital Display

相關資訊

更新日期 2023年4月3日

Model

E8Y-P 種類 1

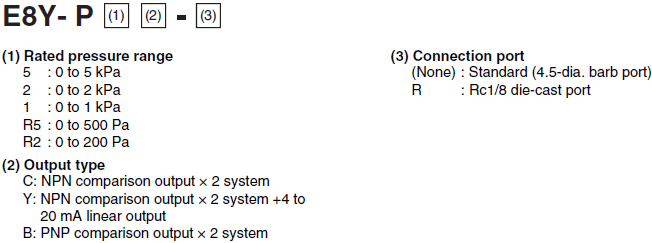

Ordering Information

Devices*1

Pressure range Comparison output Linear output Model
0 to 200 Pa NPN open collector - E8Y-PR2C
0 to 500 Pa E8Y-PR5C
0 to 1 kPa E8Y-P1C
0 to 2 kPa E8Y-P2C
0 to 5 kPa E8Y-P5C
0 to 200 Pa 4 to 20 mA E8Y-PR2Y
0 to 1 kPa E8Y-P1Y
0 to 5 kPa E8Y-P5Y
0 to 5 kPa PNP open collector - E8Y-P5B

*1. The price is for standard port type (Pressure Port: 4.5 dia.).
      A model number ending in -R indicates the pressure port is die-cast for Rc (PT) 1/8 models.

Accessories (Order Separately)

Panel Attachment Part Set (For □36 and □45 Models)

Model
E89-Y2 *2 *3

*2. Includes the protection cover, guide, frame, and holdaer.
*3. The E89-Y2 is not a UL-certified product.
      The E8Y-P is UL-certified with the E89-Y2 attached.
