Taiwan
產品資訊TOP
規格選型
By converting analog sensor signals to IO-Link, process data can be transmitted as digital signals, reducing the cost required for wiring from the control panel to the equipment. Increases flexibility in equipment design and facility layout.
New
K3CV
IO-Link AD 轉換器
將類比訊號轉換為 IO-Link，可有效減少控制面板與設備之間的配線
更新日期 2025年8月1日
IO-Link communication makes device design and facility layout easy
Contributes to reduced wiring between control panels and equipment

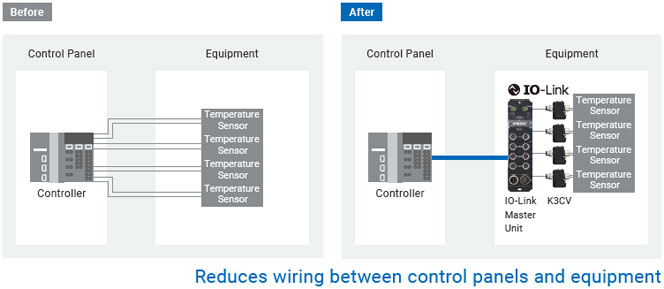

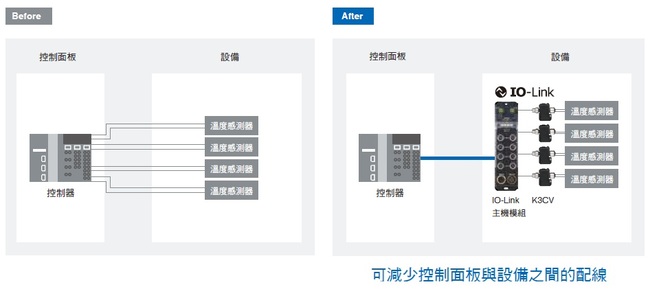

Until now, when connecting a controller inside a control panel to an analog sensor on the equipment side, it was necessary to run more cables than the number of sensors. By connecting the K3CV to an IO-Link master unit, the amount of wiring between the control panel and the equipment can be reduced.

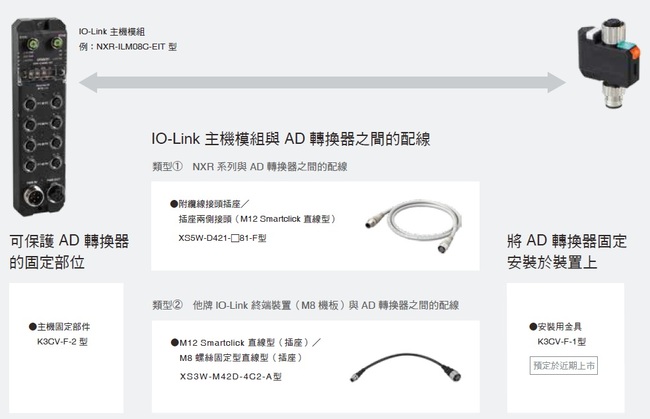

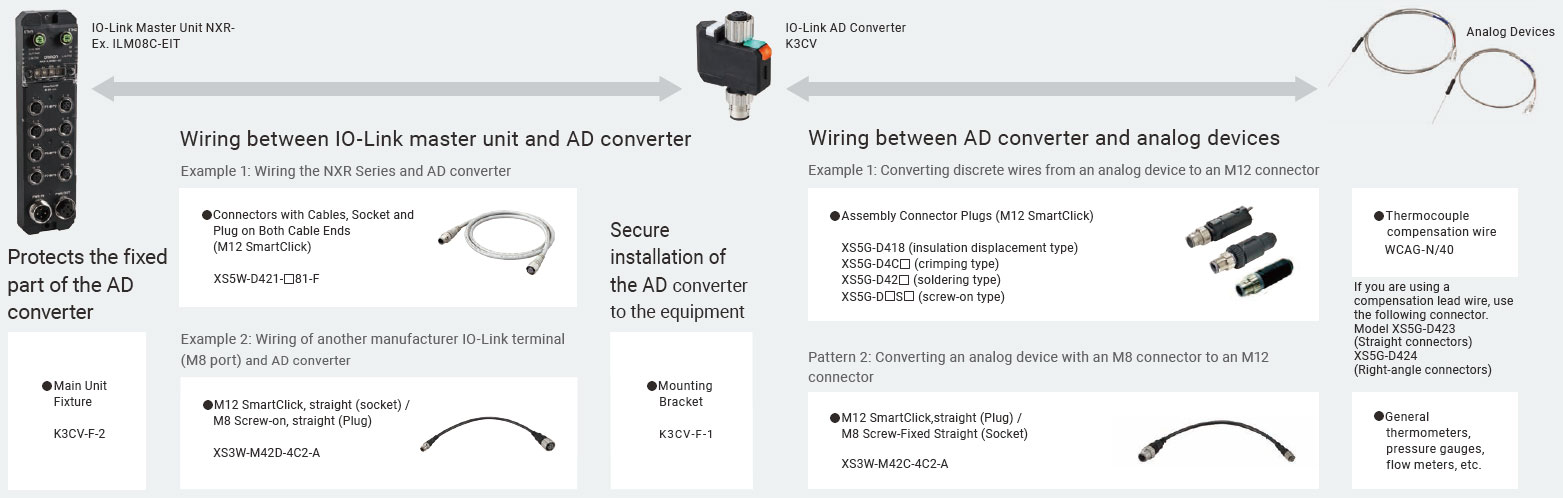

Supports connectivity with a wide range of accessories
Consideration of usability in the field
Easy to install and ready to use

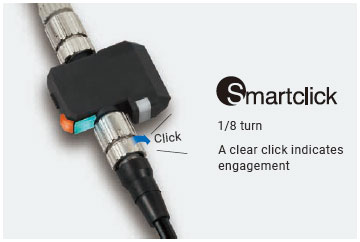

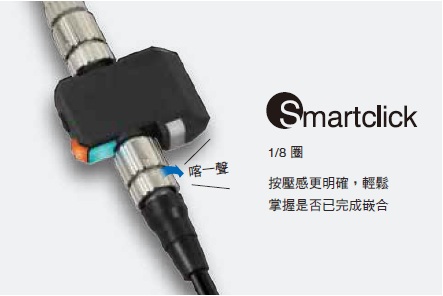

1/8 turn SmartClick for easy connection without tools.
Display at a glance

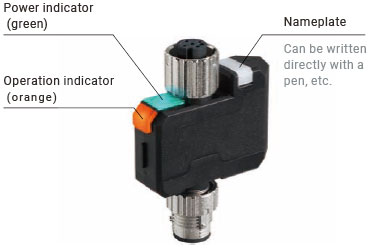

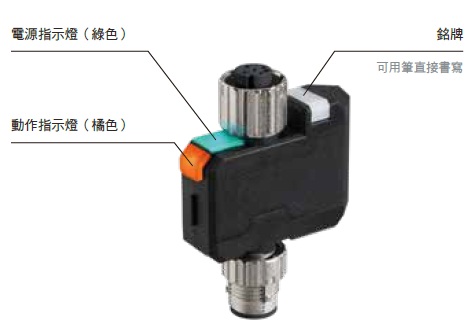

Highly visible LED display indicates operating status/errors. Nameplates simplify equipment management.
更新日期 2025年8月1日
