（單位：mm）
E3S-A
Built-in Amplifier Photoelectric Sensor (Medium Size)
- 特長
- 種類
- 額定/性能
- 外觀尺寸
- 型錄/操作手冊/CAD/軟體
更新日期 2016年2月3日
E3S-A Built-in Amplifier Photoelectric Sensor

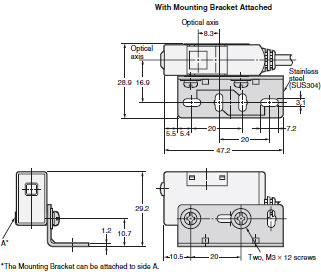

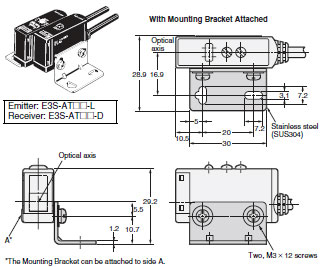

Through-beam Sensors (Horizontal)
Pre-wired Sensors

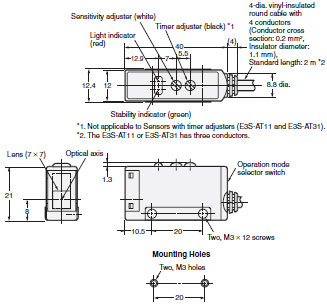

E3S-AT11/21/31/41 (Receiver)

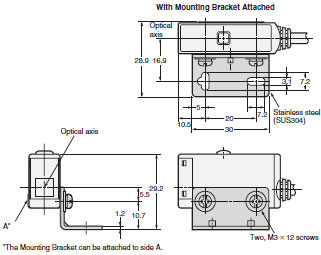

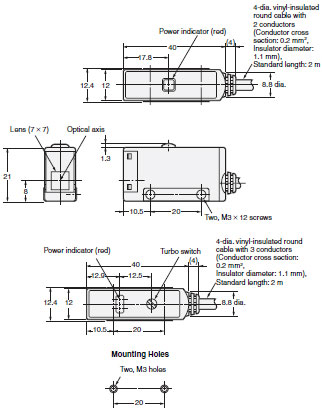

E3S-AT11/31 (Emitter)
E3S-AT21/41(Emitter)
Note:Models numbers for Through-beam Sensors (E3S-AT[]1) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT11-L 2M), the model number of the Receiver, by adding "-D" (example: E3S-AT11-D 2M). Refer to Lineup to confirm model numbers for Emitter and Receivers.

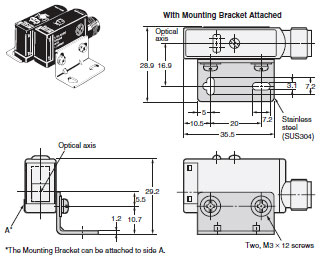

Sensors with Standard Connectors

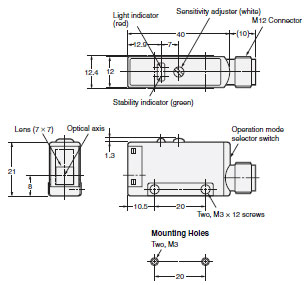

E3S-AT16/36 (Receiver)

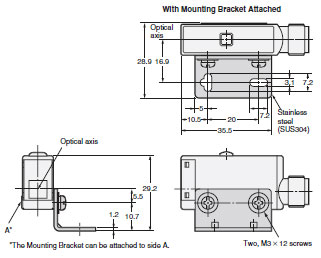

E3S-AT16/36 (Emitter)
Note: Models numbers for Through-beam Sensors (E3S-AT[]6) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT16-L),
the model number of the Receiver, by adding "-D" (example: E3S-AT16-D). Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT16-L),
the model number of the Receiver, by adding "-D" (example: E3S-AT16-D). Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.

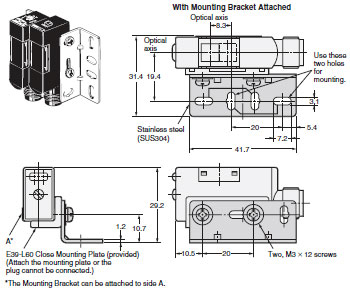

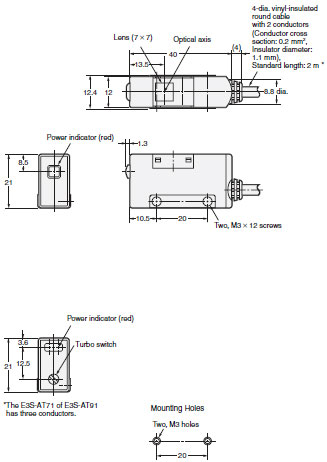

Through-beam Sensors (Vertical)
Pre-wired Sensors

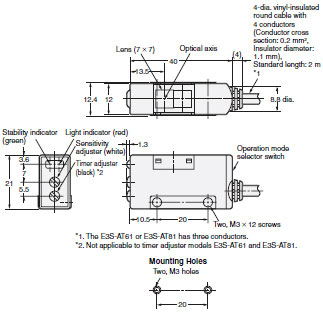

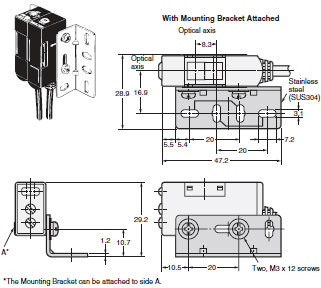

E3S-AT61/71/81/91 (Receiver)
E3S-AT61/81 (Emitter)
E3S-AT71/91 (Emitter)
Note:Models numbers for Through-beam Sensors (E3S-AT[]1) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT61-L 2M), the model number of the Receiver, by adding "-D" (example: E3S-AT61-D 2M). Refer to Lineup to confirm model numbers for Emitter and Receivers.
Connector Sensors
E3S-AT66/86 (Receiver)
E3S-AT66/86 (Emitter)
Note: Models numbers for Through-beam Sensors (E3S-AT[]6) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT66-L),
the model number of the Receiver, by adding "-D" (example: E3S-AT66-D). Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT66-L),
the model number of the Receiver, by adding "-D" (example: E3S-AT66-D). Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.

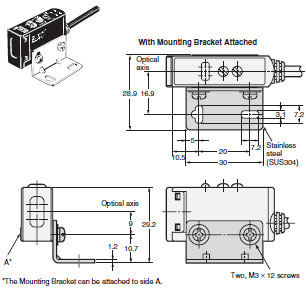

Retro-reflective Sensors (Horizontal)
Pre-wired Sensors

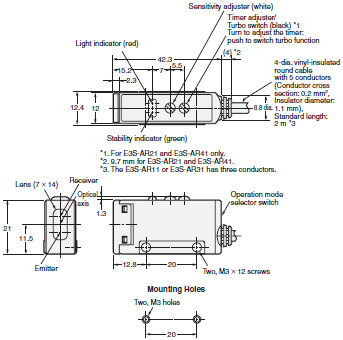

E3S-AR11/21/31/41
Sensors with Connectors

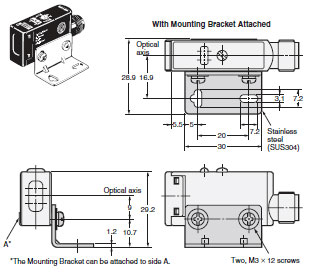

E3S-AR16/36

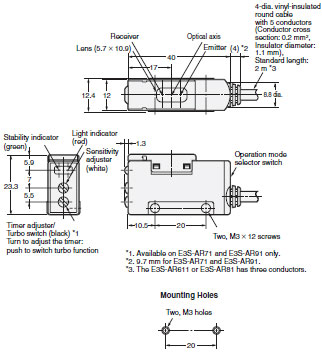

Retro-reflective Sensors (Vertical)
Pre-wired Sensors
E3S-AR61/71/81/91

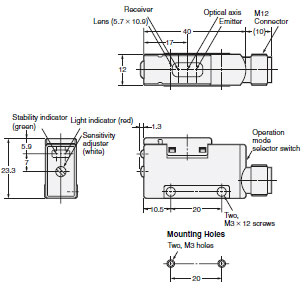

Sensors with Connectors
E3S-AR66/86
Diffuse-reflective Sensors (Horizontal)
Pre-wired Sensors

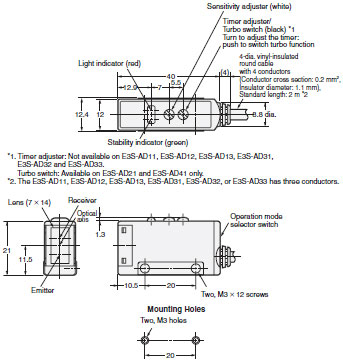

E3S-AD11/12/13/21/22/23/31/32/33/41/42/43
Sensors with Connectors
E3S-AD16/17/18/36/37/38

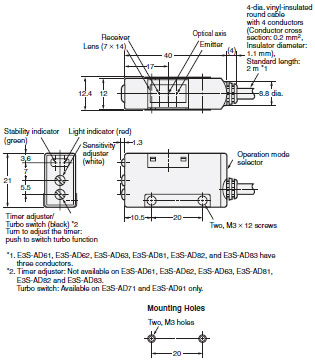

Diffuse-reflective Sensors (Vertical)
Pre-wired Sensors

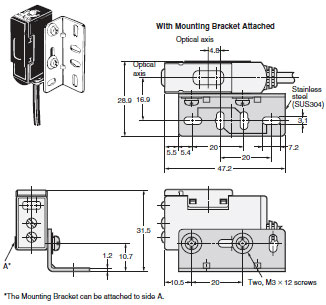

E3S-AD61/62/63/71/72/73/81/82/83/91/92/93
Sensors with Connectors
E3S-AD66/67/68/86/87/88
Accessories (Order Separately)

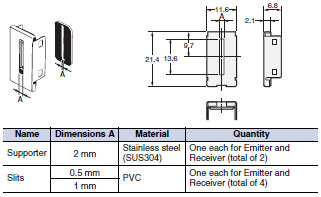

Insert-type Long Slit (For Through-beam Model)
E39-S46
Filters for Mutual Interference Prevention (For Through-beam Model)
E39-E6

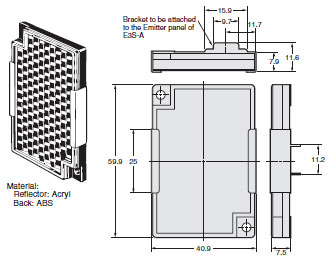

Optical Axis Confirmation Reflector (For Through-beam Model)
E39-R5
