CK[]M-CPU1[]1

Programmable Multi-Axis Controller CK3M-series CPU Unit

CK[]M-CPU1[]1

Controls analog servo drives at high speeds of up to 50 μs/5 axes, enabling high-precision processing

(單位:mm)

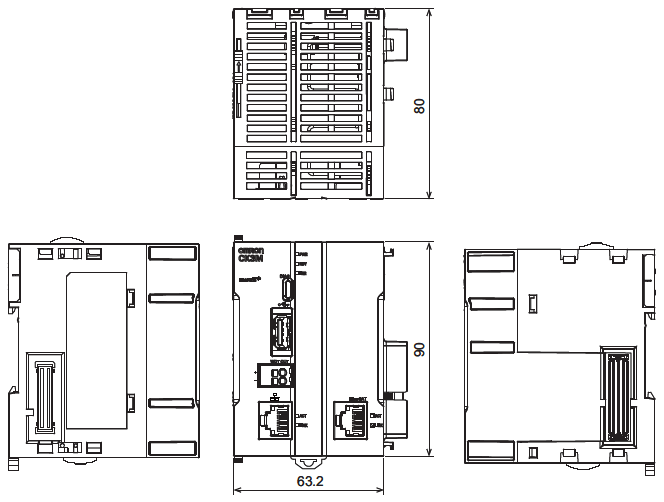

CPU Unit

CK[]M-CPU1[]1 外觀尺寸 1

End Cover

CK[]M-CPU1[]1 外觀尺寸 2

Power Supply Unit

CK[]M-CPU1[]1 外觀尺寸 3

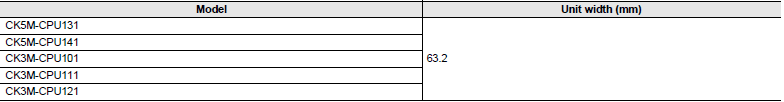

CPU Unit

CK[]M-CPU1[]1 外觀尺寸 4

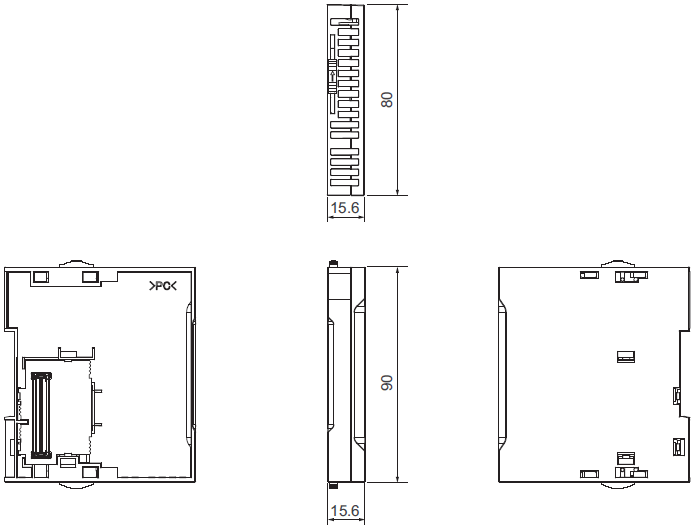

End Cover

CK[]M-CPU1[]1 外觀尺寸 5

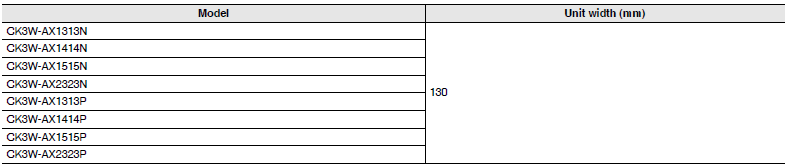

Axis Interface Unit

CK[]M-CPU1[]1 外觀尺寸 6

Digital I/O Unit, Analog Input Unit, Expansion Master Unit, and Expansion Slave Unit

CK[]M-CPU1[]1 外觀尺寸 7

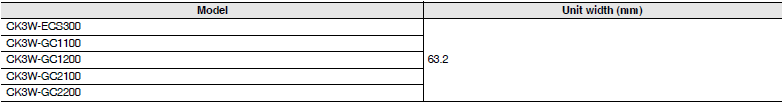

Encoder Input Unit / Laser Interface Unit

CK[]M-CPU1[]1 外觀尺寸 8

Expansion Master Unit and Expansion Slave Unit

CK[]M-CPU1[]1 外觀尺寸 9

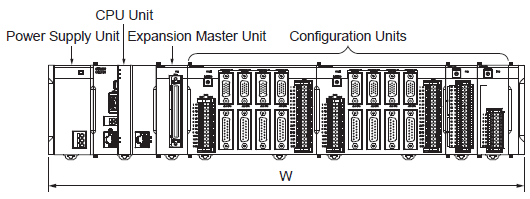

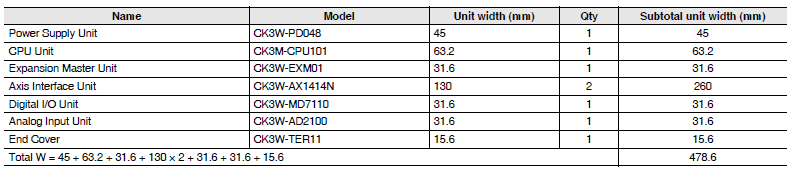

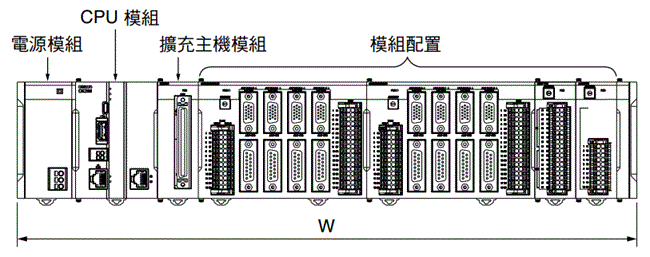

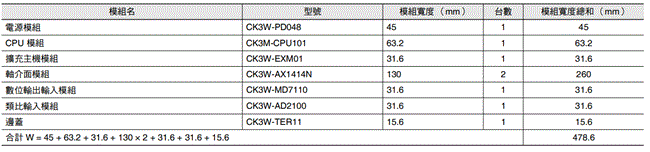

Design Example for Width W

CK[]M-CPU1[]1 外觀尺寸 10
CK[]M-CPU1[]1 外觀尺寸 11
