TM S系列

OMRON TM Collaborative Robot, S Series

TM S系列

S Series Collaborative Robot (Cobot) for assembly, palletizing, inspection, logistics and many other applications

(單位:mm)

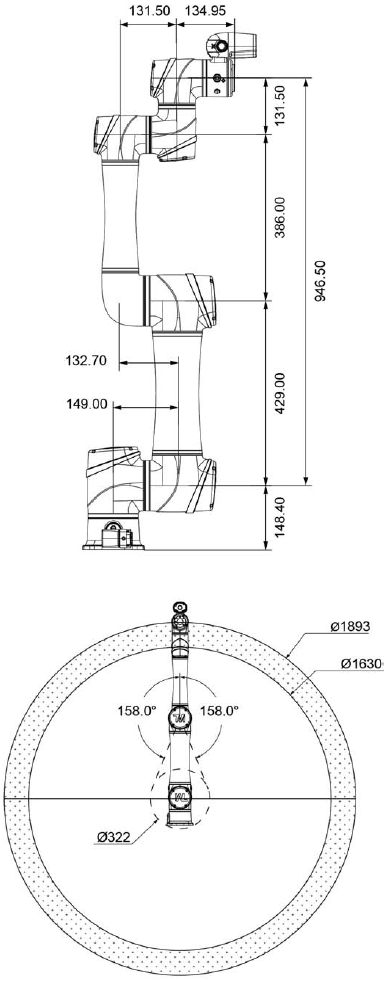

TM5S/TM5S-X */TM5S-M/TM5S-MX *

TM S系列 外觀尺寸 1

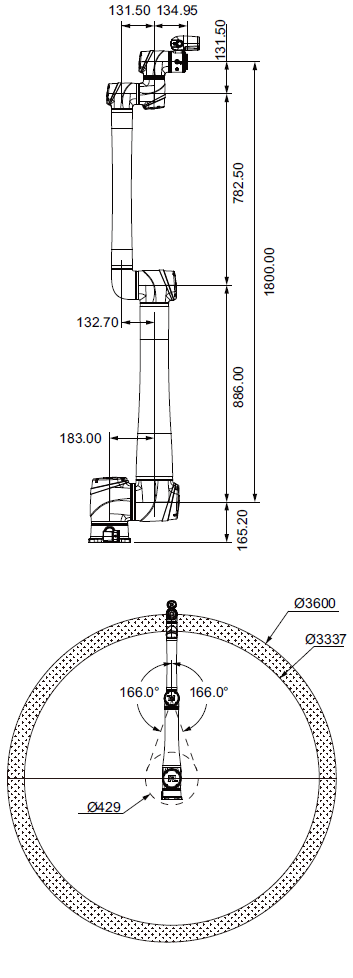

TM6S/TM6S-X */TM6S-M/TM6S-MX *

TM S系列 外觀尺寸 2

* Dimensions do not include the camera. Refer to the Camera Dimensions for more information.

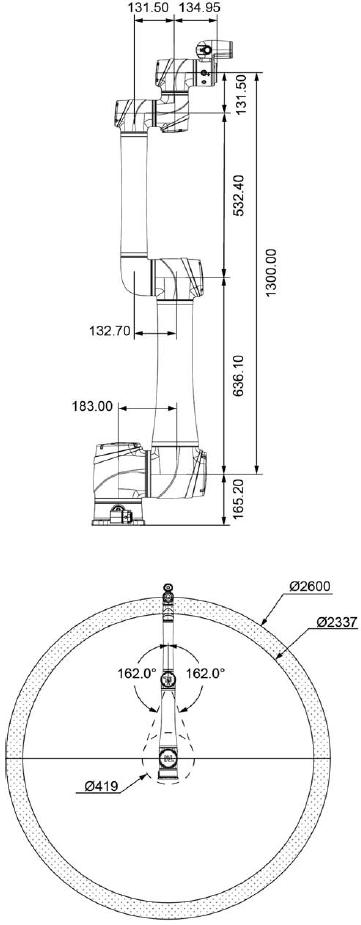

TM7S/TM7S-X */TM7S-M/TM7S-MX *

TM S系列 外觀尺寸 4

TM12S/TM12S-X */TM12S-M/TM12S-MX *

TM S系列 外觀尺寸 5

* Dimensions do not include the camera. Refer to the Camera Dimensions for more information.

TM14S/TM14S-X */TM14S-M/TM14S-MX *

TM S系列 外觀尺寸 7

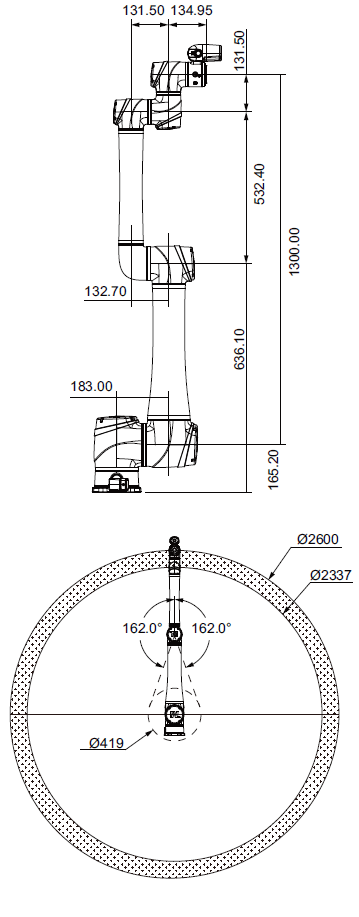

TM20S/TM20S-X *

TM S系列 外觀尺寸 8

* Dimensions do not include the camera. Refer to the Camera Dimensions for more information.

TM25S/TM25S-X */TM25S-M/TM25S-MX *

TM S系列 外觀尺寸 10

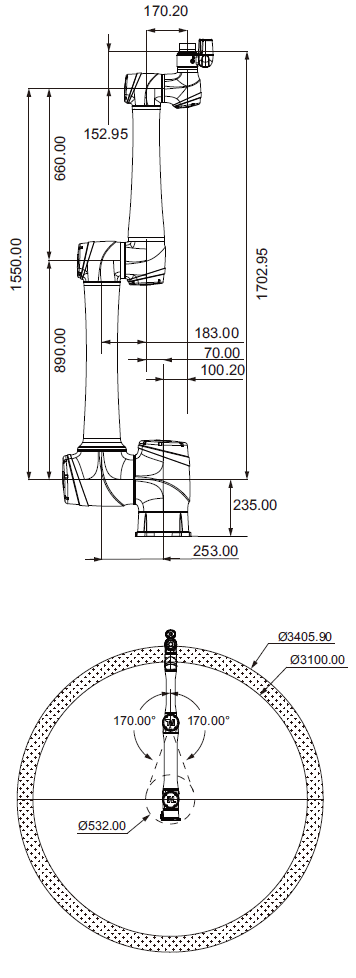

TM30S/TM30S-X */TM30S-M/TM30S-MX *

TM S系列 外觀尺寸 11

* Dimensions do not include the camera. Refer to the Camera Dimensions for more information.

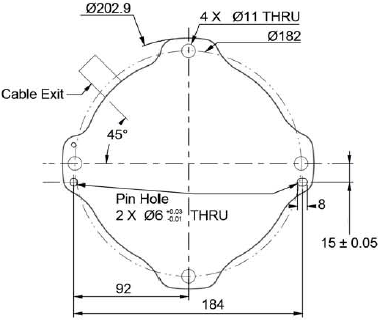

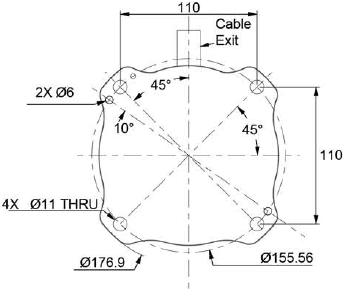

Footprint (TM5S/7S Models)

TM S系列 外觀尺寸 13

Footprint (TM6S/12S/14S/20S Models)

TM S系列 外觀尺寸 14

Footprint (TM25S/30S Models)

TM S系列 外觀尺寸 15

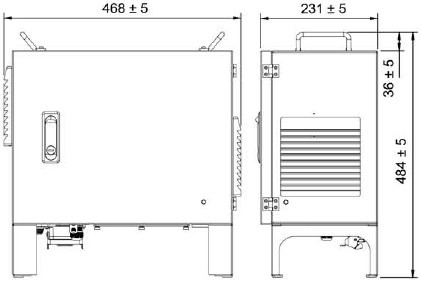

TM5S/6S/7S/12S/14S/20S Control Box (AC)

TM S系列 外觀尺寸 16

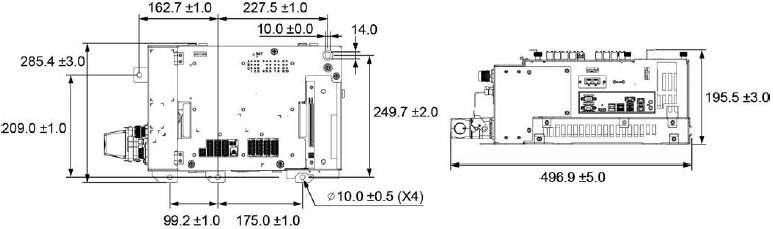

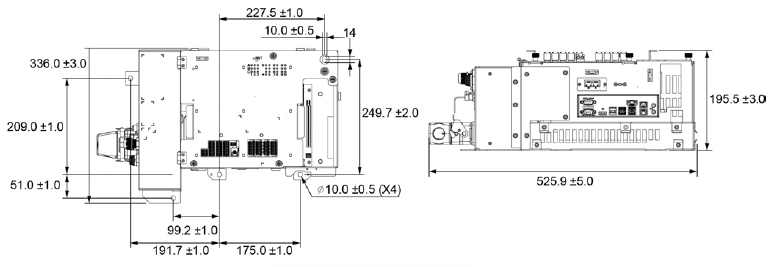

TM5S/6S/7S/12S/14S Control Box (DC)

TM S系列 外觀尺寸 17

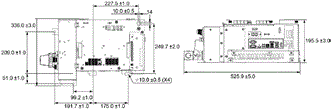

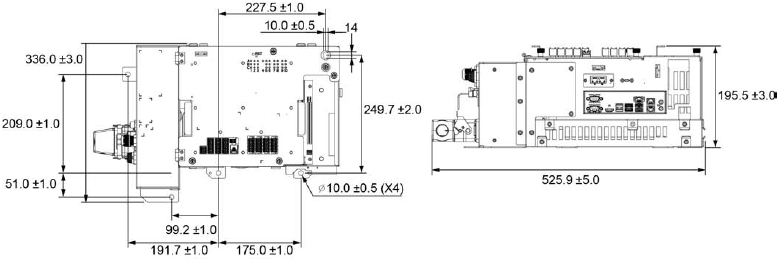

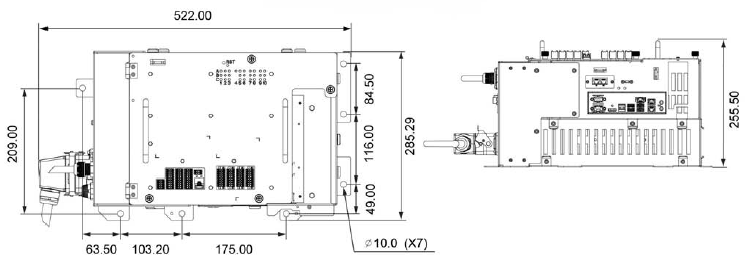

TM5S/7S/12S/14S Control Box (DC SEMI)

TM S系列 外觀尺寸 18

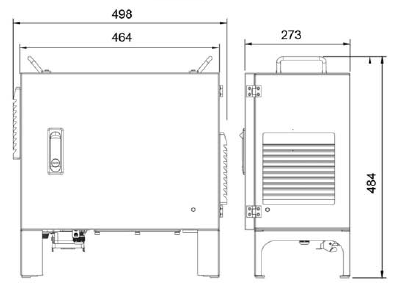

TM25S/30S Control Box (AC)

TM S系列 外觀尺寸 19

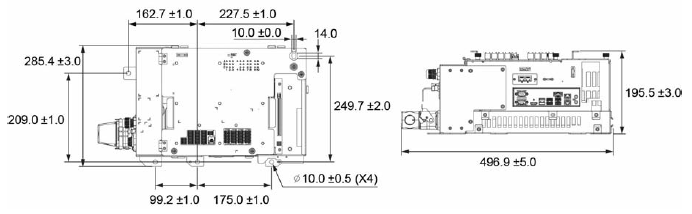

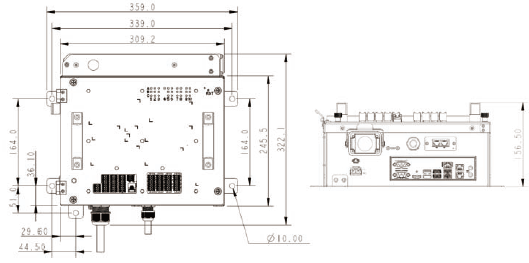

TM25S/30S Control Box (DC)

TM S系列 外觀尺寸 20

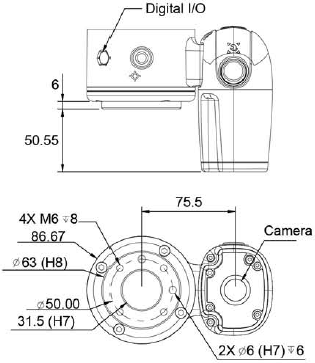

Tool Flange

TM S系列 外觀尺寸 21

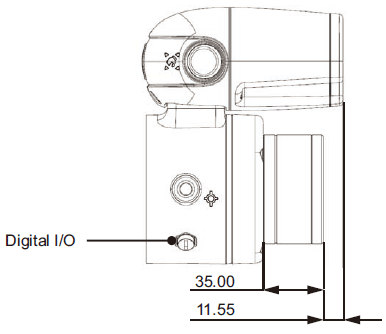

Tool Flange with Integrated Force/Torque Sensor (TM25S/TM30S Models)

TM S系列 外觀尺寸 22
