S8NR-S / S8R-BB

Environment-resistant IP67 Power Supply / DC Blocking Box

S8NR-S / S8R-BB

IP67 compliance and integrated functionality simplify the construction of power and safety circuits outside of control panels

S8NR-S

S8NR-S36024-A[]L[]-IL3

Model S8NR-S36024-A0L2-IL3 S8NR-S36024-A2L1-IL3
Efficiency *1 100 VAC Input *1 92% typ. (Power supply section only: 94% typ.)
200 VAC Input *1 94% typ. (Power supply section only: 96% typ.)
Input
conditions
Input voltage allowable
range *3
85 to 264 VAC
Frequency *3 50/60 Hz (47 to 63Hz)
Input current 4.0 A typ. (100 VAC input)
2.0 A typ. (200 VAC input)
Power factor 0.9 min.
Leakage current 0.5 mA max. (100 VAC input)
1 mA max. (200 VAC input)
Inrush current
(for a cold start at 25°C)
7 A typ. (100 VAC input)
14 A typ. (200 VAC input)
Output
characteristics
Number of branches 4 (M12-L×2) 4 (M12-A×2, M-12L×1)
Maximum cutoff output
current (per branch)
M12-A: 3.8 A (Class 2 Output) M12-L: 10 A
Total output current 15 A
Voltage variable range 24 to 28 V (adjustable with HMI or IO-Link communication)
Ripple noise voltage
(at rated input and
outputs) *1
130 mV p-p max. (at 20 MHz of bandwidth)
Output leakage current 10 mA max.
Static input fluctuation 0.5% or less (at input 85 to 264 VAC, 100% load) *2
Load fluctuation 4.0% or less (at rated input, 0 to 100% Load) *2
Ambient temperature
fluctuation
0.05%/℃ max.
Startup time *5 2,000 ms max *1
Outputs hold time *5 45 ms typ. (at rated input and outputs) *1
Functions Tripping functions Abnormal
voltage
tripping
24.0 to 32.0 V (in 0.1 V unit)
Abnormal
current
tripping *2
Setting range: M12-A: 0.5 to 3.8 A (in 0.1 A unit),
M12-L: 0.5 to 10 A (in 0.1 A unit)
Abnormal
total current
tripping
The output is shut off when the total output current
reaches 30 A for 1 s, 26 A for 2 s, 22.5 A for 5 s,
19.5 A for 10 s, or 18 A for 20 s.
Undervoltage
detection
functions
Undervoltage
Detection
Setting range: 18.0 to 28.0 V (in 0.1 V unit)
Maintenance
forecast
monitor
function
Years up to
replacement
time
Setting range: 0.0 to 5.0 yr (in 0.5 yr unit)
Percentage
up to
replacement
time
Setting range: 0.0 to 99.9% (in 0.1% unit)
Total running
time
Setting range: 0 to 132 kh (in 1 kh unit)
Display functions Output voltage
display
Display range: 16.3 to 30.0 V
Display accuracy: 2% rdg ±1 digit max.
Output current
display
Branch output current display range: 0.0 to 4.0 A (M12-A),
0.0 to 10.0 A (M12-L),
Branch output peak current display range: 0.0 to 20.0 A
Total output current display range: 0.0 to 40.0 A
Display accuracy: M12-A 5% FS (4 A) ±1 digit max.
M12-L 5% FS (10 A) ±1 digit max.
Maintenance
forecast
monitor
display (yr)
Display range: FUL (Full)/HLF (Half)/0.0 to 5.0 yrs
Maintenance
forecast
monitor
display
(percentage)
Display range: 0.0 to 99.9%
Total running
time
Display range: 0 to 256 kh
Startup sequence Setting range: 0.0 to 99.9 seconds (0.1-second Unit)
Default
Branch output 1: 0.0 s
Branch output 2: 0.4 s
Branch output 3: 0.8 s
Branch output 4: 1.2 s
Shutdown sequence Setting range: 0.0 to 99.9 s (0.1 s Unit)
Series connection Not supported.
Parallel connection Not supported.
Output indicator Provided (Color: green)
Indication
monitor
Measurement/
displayed
details
For details, refer to S8NR-S Users Manual (Man. No. T245).
Main display
area
11-segment display (Color: white)
Channel display
area
Seven-segment display (Color: green)
Unit display
area
Provided (Color: yellow)
Withstand voltage Dielectric strength voltage 2 kVAC for 1 min between (input terminals pins 1 and
3 collectively) and (PE 3968_sp_1_1, branch output terminals and
IO-Link communications terminals collectively)
Cutoff current: 20 mA
Insulation resistance 100 MΩ min. at 500 VDC between (PE 3968_sp_1_1, branch output terminals and IO-Link communication terminals collectively)
and (input terminals pins 1 and 3 collectively)
Environment Ambient operating
temperature
-25 to 70℃(with no condensation or icing) *4
Storage temperature -25 to 85°C
Ambient operating
humidity
5 to 95%
Storage humidity 5 to 95%
Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude, 2h each in X, Y,
and Z directions, maximum 4.5G
Shock resistance 150 m/s2 3 times each in ±X, ±Y, ±Z directions.
Reliability MTBF 36,000 hours min.
Expected life 10 years
Construction Weight (main unit) 1,800 g max
Cooling fan blank
Protective structure
(dustproof and
waterproof) *8
IP67, UL Type1
Compatible standards Harmonic suppression Conforms to EN61000-3-2
EMI Conducted
EMI
Compliant with EN 61204-3 Class B, EN 55011 Class B
Radiated
EMI
Compliant with EN 61204-3 Class B, EN 55011 Class B *7
EMS EN 61204-3 high severity levels
Safety standards UL 508 (Listing, Class2 Output: Per UL 1310), Pol3 *6
CSA C22.2 No.107.1 (Class2 Output: Per CSA C22.2 No.223), Pol3 *6
EN/IEC 62477-1 (ES1 Output), OVCIII (<2,000 m),
OVCII (2,000 m< and <3,000 m), Pol3
RCM (EN 61000-6-4)
PELV (EN/IEC 60204-1)

*1. Rated input/output conditions: at rated input voltage, rated frequency, rated output voltage, rated total output current, and maximum cutoff output current.
*2. 100% Load condition: at rated output voltage, rated total output current and maximum cutoff output current.
*3. Although some inverters have an output frequency of 50/60 Hz, they may cause internal temperature to rise and result in damage, if they are connected as the power source for the S8NR-S. Do not use the output from an inverter as the power source for the S8NR-S.
*4. For details, refer to Derating curve on Catalog.
*5. For details, refer to Inrush current, startup time, Outputs hold time on Catalog.
*6. Class2 Output is only for M12-A output
*7. When IO-Link communication is used, this product is classified as Class A.
*8. With waterproof caps attached to unused terminals.

S8NR-S60024-A[]L[]-IL3

Model S8NR-S60024-A0L3-IL3 S8NR-S60024-A2L2-IL3
Efficiency *1 200 VAC input *1 94% typ. (Power supply section only: 95% typ.)
Input
conditions
Input voltage allowable
range *3
170 to 264 VAC
Frequency *3 50/60 Hz (47 to 63Hz)
Input current 3.2 A typ. (200 VAC input)
Power factor 0.9 min.
Leakage current 1 mA max. (200 VAC input)
Inrush current
(for a cold start at 25°C)
14 A typ. (200 VAC input)
Output
characteristics
Number of branches 6 (M12-L×3) 6 (M12-A×2, M-12L×2)
Maximum cutoff output
current (per branch)
M12-A: 3.8 A (Class 2 Output) M12-L: 10 A
Total output current 25 A
Voltage variable range 24 to 28 V (adjustable with HMI or IO-Link communication)
Ripple noise voltage
(at rated input and
outputs) *1
180 mV p-p max. (at 20 MHz of bandwidth)
Output leakage current 10 mA max.
Static input fluctuation 0.5% or less (at input 170 to 264 VAC, 100% load) *2
Load fluctuation 4.0% or less (at rated input, 0 to 100% Load) *2
Ambient temperature
fluctuation
0.05%/℃ max.
Startup time *5 2,000 ms max *1
Outputs hold time *5 20 ms typ. (at rated input and outputs) *1
Functions Tripping
functions
Abnormal
voltage
tripping
24.0 to 32.0 V (in 0.1 V unit)
Abnormal
current
tripping*2
Setting range: M12-A: 0.5 to 3.8 A (in 0.1 A unit),
M12-L: 0.5 to 10 A (in 0.1 A unit)
Abnormal
total
current
tripping
The output is shut off when the total output current reaches
43.5 A for 2 s, 37.5 A for 5 s, 32.5 A for 10 s, or 30 A for 20 s
Undervoltage
detection
functions
Undervoltage
Detection
Setting range: 18.0 to 28.0 V (in 0.1 V unit)
Maintenance
forecast
monitor
function
Years up to
replacement
time
Setting range: 0.0 to 5.0 yr (in 0.5 yr unit)
Percentage
up to
replacement
time
Setting range: 0.0 to 99.9% (in 0.1% unit)
Total running
time
Setting range: 0 to 132 kh (in 1 kh unit)
Display
functions
Output voltage
display
Display range: 16.3 to 30.0 V
Display accuracy: 2% rdg ±1 digit max.
Output current
display
Branch output current display range: 0.0 to 4.0 A (M12-A),
0.0 to 10.0 A (M12-L),
Branch output peak current display range: 0.0 to 20.0 A
Total output current display range: 0.0 to 40.0 A
Display accuracy: M12-A 5% FS (4 A) ±1 digit max.
M12-L 5% FS (10 A) ±1 digit max.
Maintenance
forecast
monitor
display (yr)
Display range: FUL (Full)/HLF (Half)/0.0 to 5.0 yrs
Maintenance
forecast
monitor
display
(percentage)
Display range: 0.0 to 99.9%
Total running
time
Display range: 0 to 256 kh
Startup sequence Setting range: 0.0 to 99.9 seconds (0.1-second Unit) Default
Branch output 1: 0.0 s
Branch output 2: 0.4 s
Branch output 3: 0.8 s
Branch output 4: 1.2 s
Branch output 5: 1.6 s
Branch output 6: 2.0 s
Shutdown sequence Setting range: 0.0 to 99.9 s (0.1 s Unit)
Series connection Not supported
Parallel connection Not supported
Output indicator Provided (Color: green)
Indication
monitor
Measurement/
displayed
details
For details, refer to S8NR-S Users Manual (Man. No. T245).
Main display
area
11-segment display (Color: white)
Channel
display
area
Seven-segment display (Color: green)
Unit display
area
Provided (Color: yellow)
Withstand
voltage
Dielectric strength voltage 2 kVAC for 1 min between (input terminals pins 1 and
3 collectively) and (PE 3968_sp_1_1, branch output terminals and
IO-Link communications terminals collectively)
Cutoff current: 20 mA
Insulation resistance 100 MΩ min. at 500 VDC between (PE 3968_sp_1_1, branch output
terminals and IO-Link communication terminals collectively)
and (input terminals pins 1 and 3 collectively)
Environment Ambient operating
temperature
-25 to 70℃(with no condensation or icing) *4
Storage temperature -25 to 85°C
Ambient operating
humidity
5 to 95%
Storage humidity 5 to 95%
Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude, 2h each in X, Y, and
Z directions, maximum 4.5G
Shock resistance 150 m/s2 3 times each in ±X, ±Y, ±Z directions.
Reliability MTBF 36,000 hours min.
Expected life 10 years
Construction Weight (main unit) 1,800 g max
Cooling fan blank
Protective structure
(dustproof and
waterproof) *8
IP67, UL Type1
Compatible standards Harmonic suppression Conforms to EN61000-3-2
EMI Conducted
EMI
Compliant with EN 61204-3 Class B, EN 55011 Class B
Radiated
EMI
Compliant with EN 61204-3 Class B, EN 55011 Class B *7
EMS EN 61204-3 high severity levels
Safety standards UL 508 (Listing, Class2 Output: Per UL 1310), Pol3 *6
CSA C22.2 No.107.1 (Class2 Output: Per CSA C22.2 No.223), Pol3 *6
EN/IEC 62477-1 (ES1 Output), OVCIII (<2,000 m),
OVCII (2,000 m< and <3,000 m), Pol3
RCM (EN 61000-6-4)
PELV (EN/IEC 60204-1)

*1. Rated input/output conditions: at rated input voltage, rated frequency, rated output voltage, rated total output current, and maximum cutoff output current.
*2. 100% Load condition: at rated output voltage, rated total output current and maximum cutoff output current.
*3. Although some inverters have an output frequency of 50/60 Hz, they may cause internal temperature to rise and result in damage, if they are connected as the power source for the S8NR-S. Do not use the output from an inverter as the power source for the S8NR-S.
*4. For details, refer to Derating curve on Catalog.
*5. For details, refer to Inrush current, startup time, Outputs hold time on Catalog.
*6. Class2 Output is only for M12-A output
*7. When IO-Link communication is used, this product is classified as Class A.
*8. With waterproof caps attached to unused terminals.

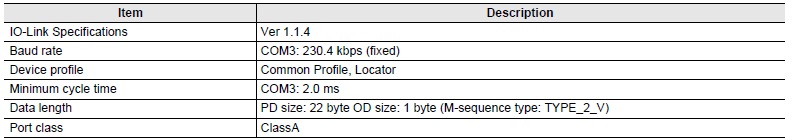

IO-Link Specifications

S8NR-S / S8R-BB 額定/性能 6

Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).

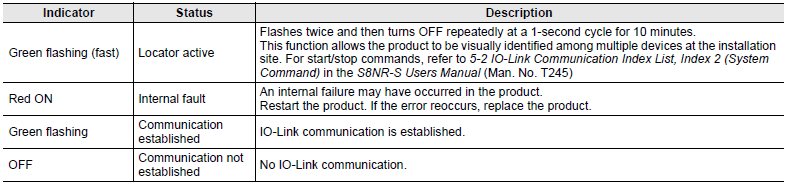

IO-Link Indicator LEDs

The LED indications are prioritized in the order listed from top to bottom in this table.
When multiple statuses occur simultaneously, the indication listed higher in the table is displayed.

S8NR-S / S8R-BB 額定/性能 7

IO-Link Communication Index List

Refer to the S8NR-S Users Manual (Man. No. T245) for IO-Link communication Index list.

S8R-BB

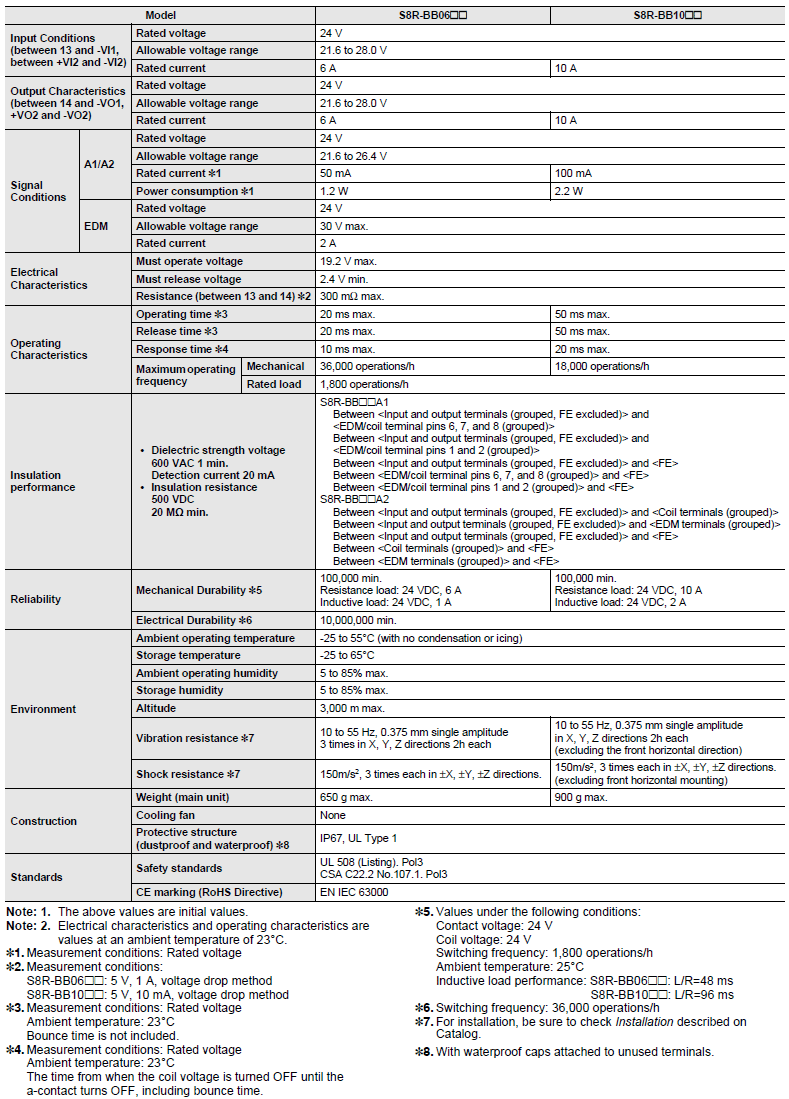

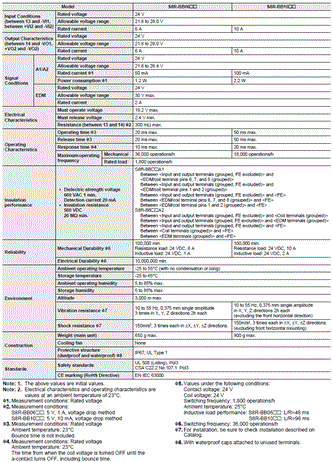

Specifications

S8NR-S / S8R-BB 額定/性能 10
