S8VK-WB

Switch Mode Power Supply (240/480/960-W Models)

S8VK-WB

Even more compact three-phase 380 to 480 V input power supplies. Reduces wiring work with the Push-In Plus terminals. With a line-up that includes 24 VDC and 48 VDC models.

Saving Space and More-advanced Control Panels

Harmonized design and side-by-side mounting help delivering more compact control panels with additional functionality.

Uniform height reduces dead space and enables control panel downsizing

S8VK-WB 特長 2

The switch mode power supply, noise filter, and DC electronic circuit protector, all compliant with the “Value Design for Panel” concept, are made to be uniform in height to reduce dead space and enable control panel downsizing.

S8VK-WB 特長 3

Shortening Lead Time for Control Panel Building

With its extensive product lineup and features such as electrical control CAD support and status visualization, the S8VK Series helps streamline processes in building equipment and control panels.

[Design]

Extensive array of products with different input specifications and capacities significantly reduces selection effort

The S8VK Series offers both models with single phase (200-240 V) input and those with the more popular high-capacity three-phase input, allowing you to significantly reduce selection effort: just select a product with the input voltage and capacity best suited for your purpose.

S8VK-WB 特長 6

eCAD library provided for all models greatly reduces design work

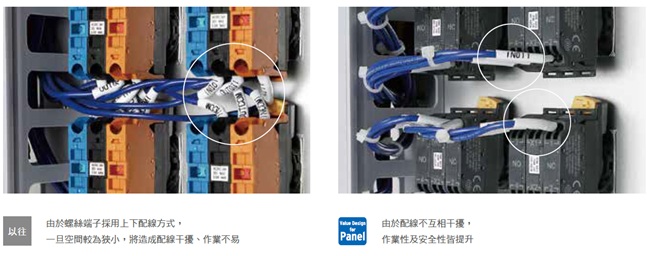

S8VK-WB 特長 7

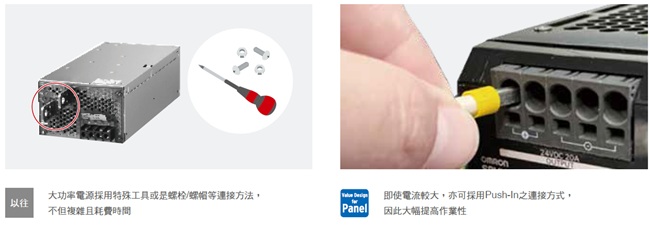

S8VK-WB 特長 8

OMRON provides the libraries for over 48,000 models*4, highest in the industry, to achieve the great reduction of works for electrical design drawing and data creation.

*4. In the case of EPLAN, based on OMRON’s investigation as of 2020 December
*5. In the case of ZUKEN E3 series

eCAD Partners

By cooperating with various partners, we offer you more choices for your eCAD solutions.

S8VK-WB 特長 9

E3.series is a product name of Zuken Inc. for their Electrical and Control Cable Design Solution.
EPLAN is a registered trademark of EPLAN Software & Service GmbH & Co. KG.

[Shipment/Operation]

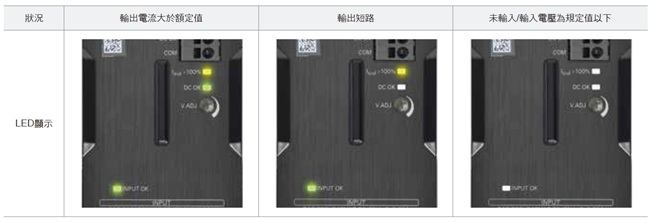

LED indicators visualize input power supply / output current status, allowing for faster check-ups upon startup or during operation

[S8VK-WA/WB]

S8VK-W power supplies notify users of their input voltage / load status via LED indicators and signal output. This clarifies failure status and required actions, allowing users to troubleshoot more quickly upon startup or during operation.

S8VK-WB 特長 12

Stable operation in a wide range of environments

With excellent vibration and environmental resistance, S8VK power supplies can be used in a wide range of environments.

Issues in stable control panel operation

With the global expansion of production sites, control panels are expected to operate stably in vastly different environments

S8VK-WB 特長 15

Control panels must comply with standards mandatory in their respective destinations

S8VK-WB 特長 16

Excellent vibration resistance enables stable operation

The S8VK Series enables stable facility operation even in environments with significant vibration.

S8VK-WB 特長 17

Vibration resistance enables safe transport as well as reliable operation

Robustly designed for 5G vibration resistance twice the resistance of conventional industrial power supplies.
S8VK power supplies can be safely transported by ship or over rugged terrain.

S8VK-WB 特長 18

Can operate in a wide range of temperatures, from areas of extreme cold to the hot location

Ambient operating temperature of -40°C to 70°C

S8VK-WB 特長 19

Can operate in highly humid / dusty environments

Operating humidity of up to 95%; PCBs coated for higher protection from dust

S8VK-WB 特長 20

Can operate in high altitude environments with low atmospheric pressure

Complies with safety standards even at 3,000 m altitude *1

S8VK-WB 特長 21

Supports global expansion of production sites through standard compliance and regulations

Complies with major standards such as UL and CSA as well as CE mark and other standards mandatory in specific regions for reliable use almost anywhere in the world. *1

S8VK-WB 特長 22

*1. Refer to the datasheet of each product for information on supported standards.
